TECHNICAL OWNER MANUAL
NFINITY OPERATION & CARE

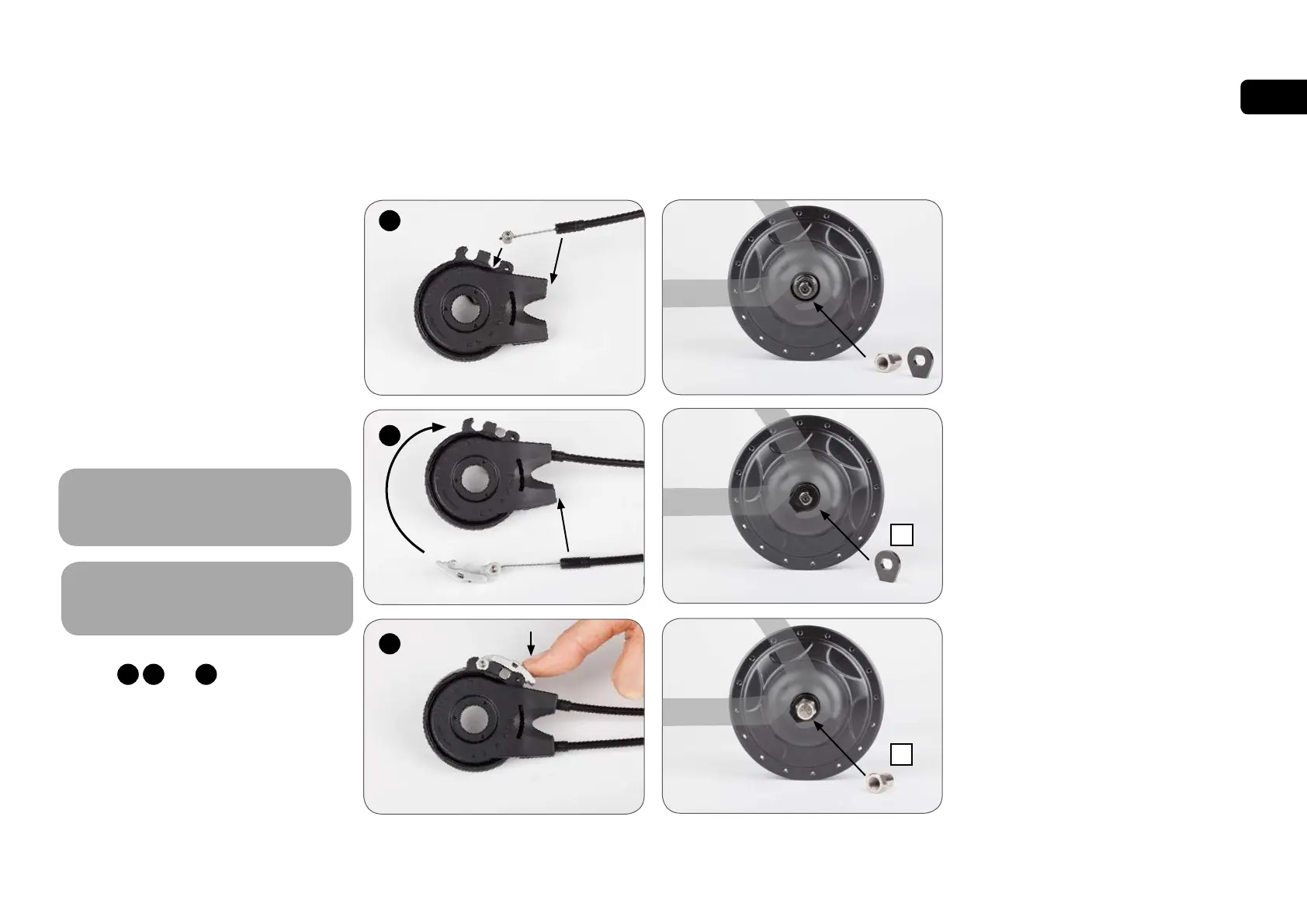

2.5 Fitting the Rear Wheel
1. Place the rear wheel into the rear frame,
making sure not to obstruct shift cables.
2. Slide one no-turn washer (A) each onto
each axle end. The serrations of the no-turn
washer must bear against the dropout
of the frame. The rectangular boss must
engage in the dropout of the frame.
3. Mount the axle nuts (B). Tightening torque
30-40 Nm (266-350 in-lbs).
- For rim and roller brake applications,
connect the rear brake according to the
manufacturer’s instructions.
Improper installation of the no-turn
washer may result in damage to the
dropout and the hub.
Over-tightening may damage parts.
Under-tightening can result in the axle
sliding in the dropouts.
4. Install the shift cable hardware following
steps and
1 2 3
1
2
3

!

!
A
B
