Oki C5650 Maintenance Instructions

43827101TH Rev.2 81 /
Oki Data CONFIDENTIAL
4.2.10 Controller Panel Assy
1) Open the top cover.
(2) Open the feeder unit.
(3) Detach the right side cover. (See Subsection 4.2.3.)
(4) Remove the plate shield assembly. [See Subsection 4.2.7 (2).]
(5) After unplugging the connector of the control panel assembly, free the hook.
(6) Remove four screws (silver) 1, and detach control panel Assy 2.

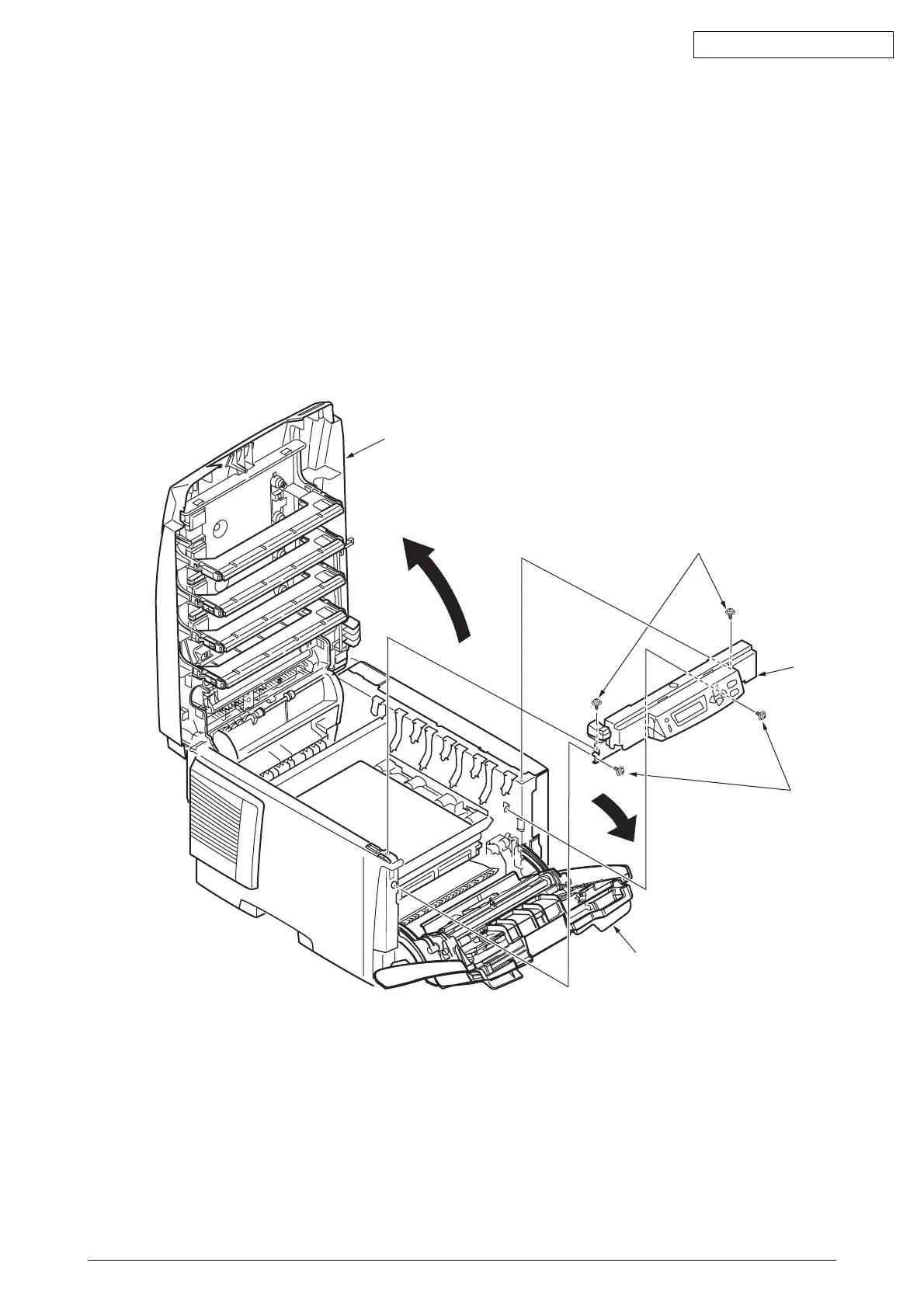

Figure 4-2-10 Control Panel Assy
1
1
2
Top cover
Feeder unit
