Oki C710 - Page 208

43856301TH Rev.3
207 /
Oki Data CONFIDENTIAL

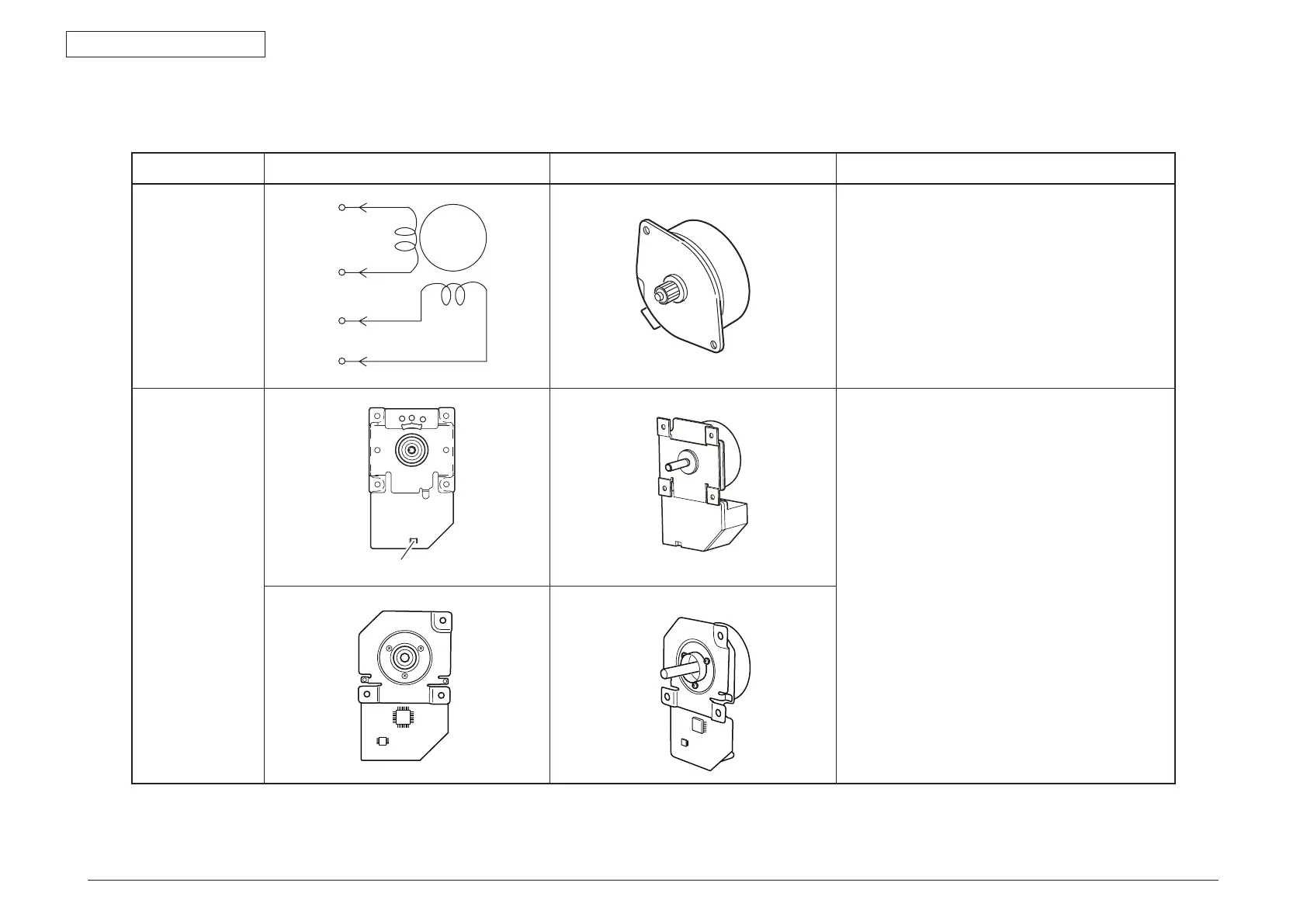

8. Connection diagrams
Unit Electrical circuit diagram, connection Part outside view Resistance value
ID up/down motor
M
1
2
3
4
Between pin-1 and pin-2: 6.1
Ω
Between pin-3 and pin-4: 6.1
Ω
Fuser unit motor Across both ends of IP1: 1
Ω
or less
IP1
