4. Component replacement

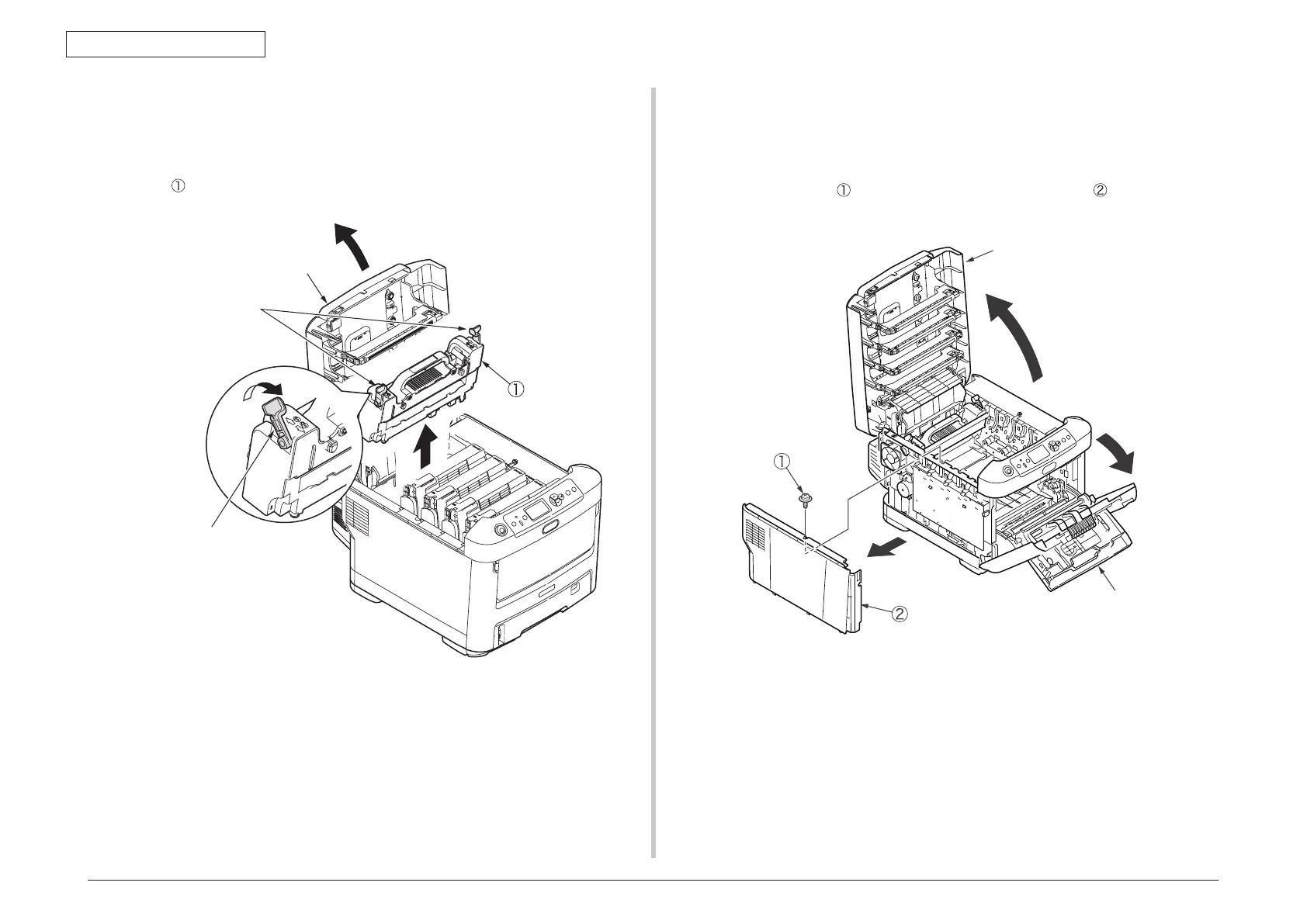

4.2.2 Fuser unit
(1) Open the top cover.
(2) Push up the fix lever of fuser unit in the direction of arrow, and remove the fuser
unit
.
Top cover
Fix lever of fuser unit (blue)
Fix lever of fuser unit (blue)
4.2.3 Left side cover
(1) Open the top cover.
(2) Open the feeder unit.
(3) Remove the screw
(silver), and remove the left side cover .
Feeder unit
Top cover
