Oki C710 - Resistance Value Check

43856301TH Rev.3
206 /
Oki Data CONFIDENTIAL
8. Connection diagrams

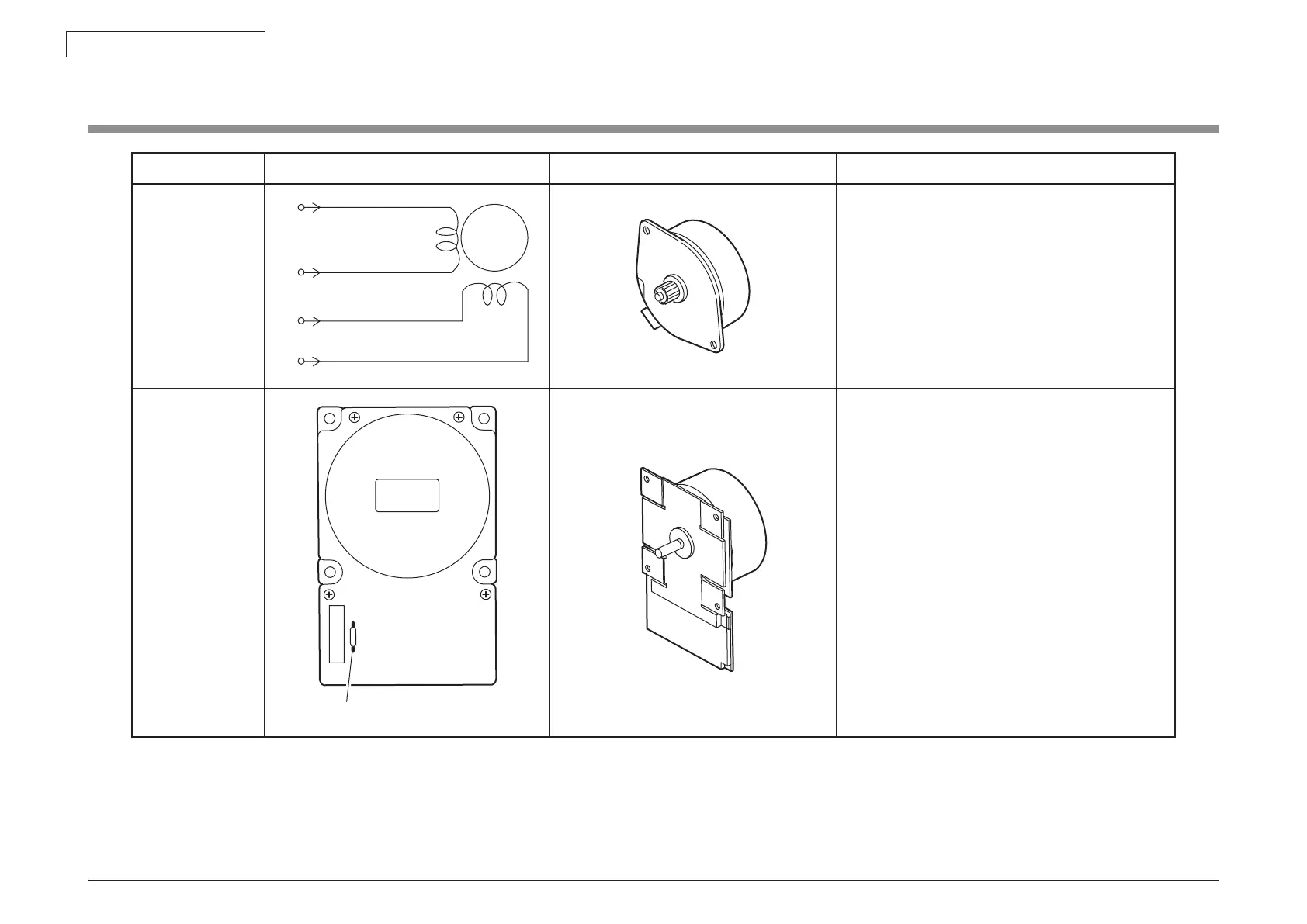

8.1 Resistance value check
Unit Electrical circuit diagram, connection Part outside view Resistance value
Transport belt
motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Ω
Between pin-3 and pin-4: 3.4
Ω
ID motor
F1
Across both ends of F1: 1
Ω
or less
