4. Component replacement

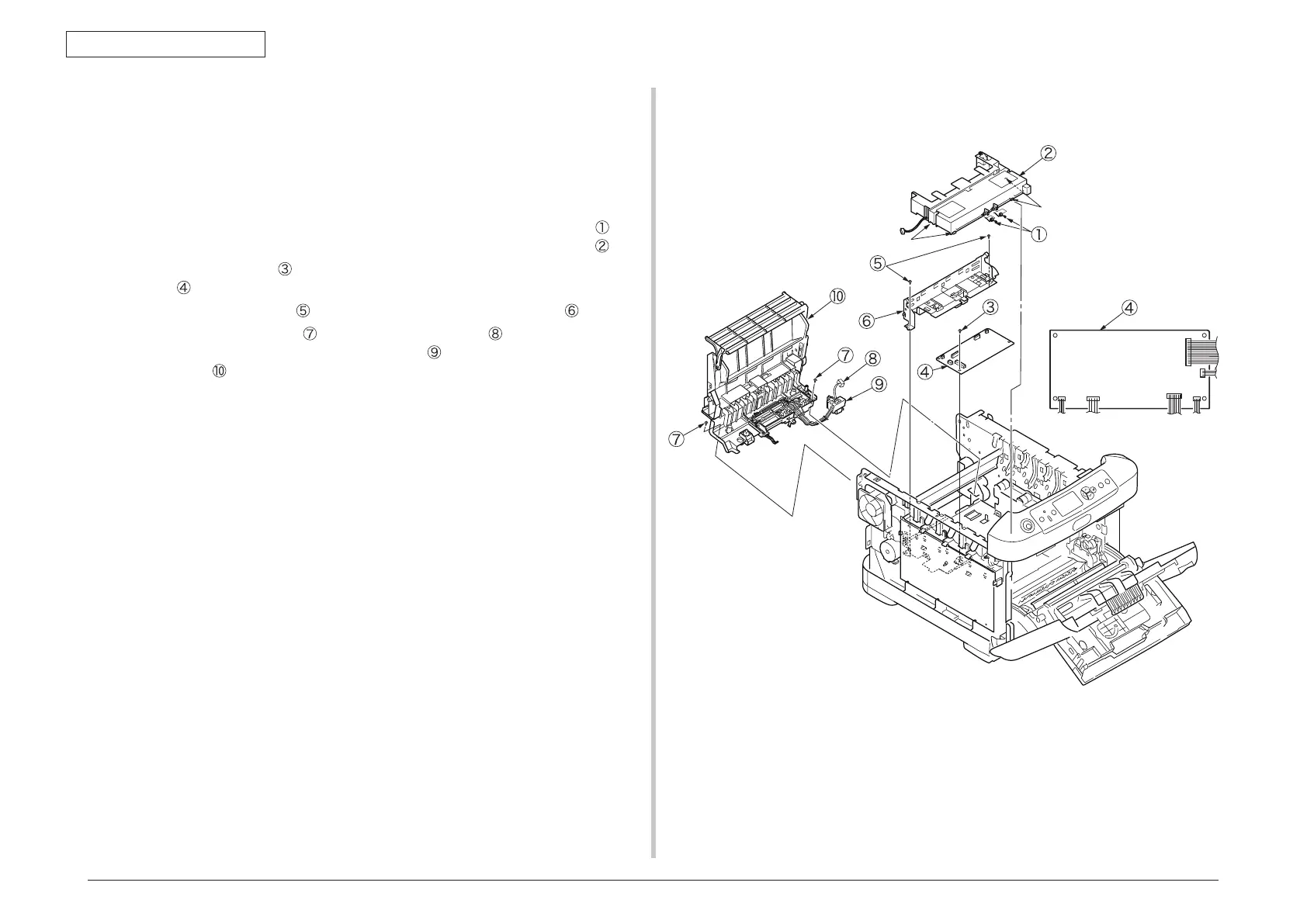

4.2.16 Guide eject Assy/ Color resist Assy/ Board-PRY
(1) Remove the left side cover, right side cover, rear cover, top cover Assy. (See
section 4.2.3, 4.2.4, 4.2.6, 4.2.10 )
(2)
Remove the print engine controller PCB, control PCB and low-voltage power
supply. (See section 4.2.8, 4.2.9, 4.2.15(3))
(3)
Remove the connector of belt thermistor, remove the two torsion springs
, and
disengage four claws (4 places) by minus driver, remove the cover driver
.
(4) Remove the screws
(silver) and connectors (6 places), remove the Board
PRY
.
(5) Remove the two screws
(silver) and remove the color resist Assy .
(6) Remove the two screws
(silver), remove the cable of fuse I/F connector
from clamp, and slide the claw of cable guide
to disengage, remove the guide
eject Assy
.
FUSER
LCR
RCR
DENS
EXIT
PUIF
Claw
Claw
