4. Component replacement

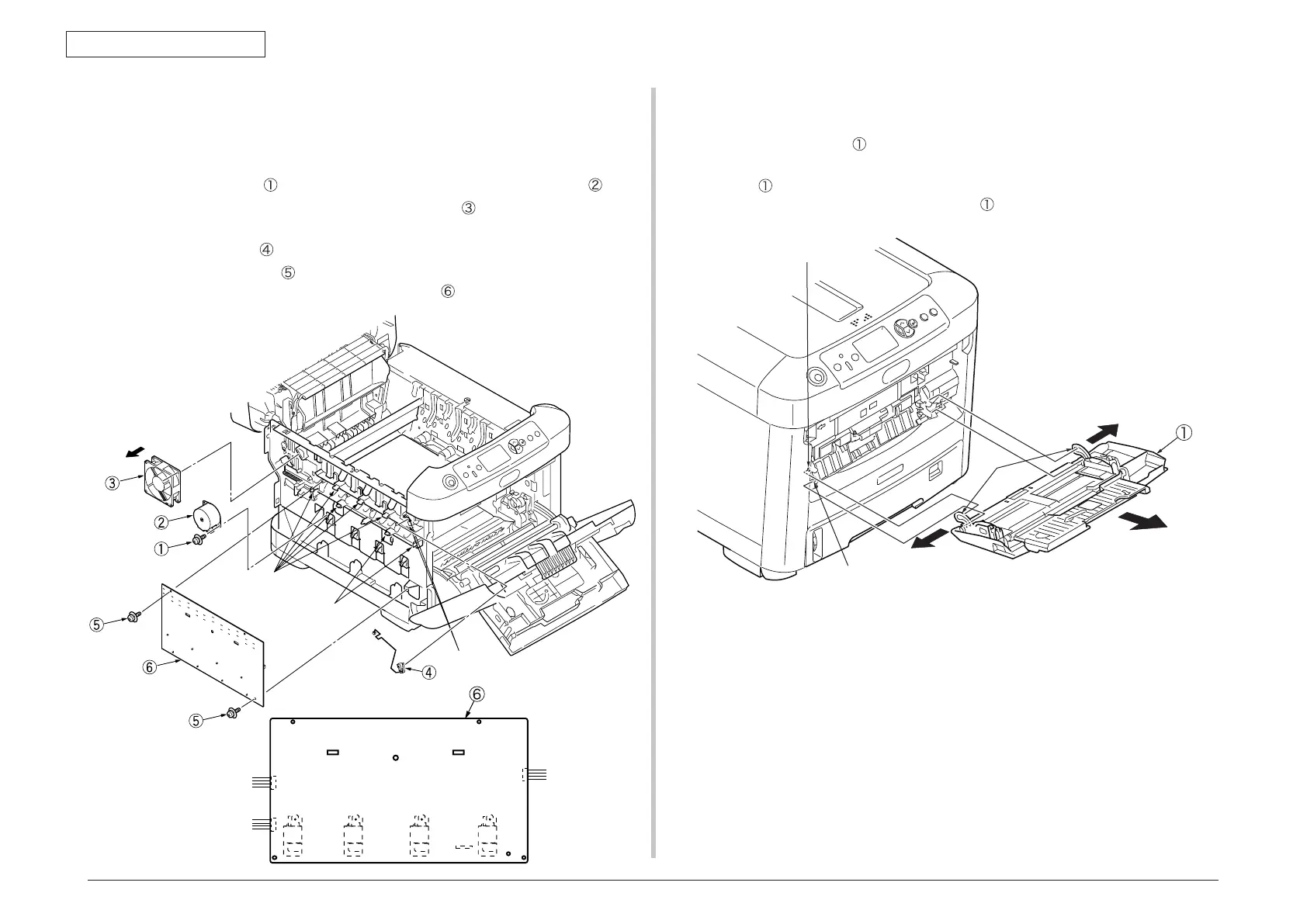

4.2.17 FAN(Fuser) / Belt motor/ High-voltage board/
Cover open switch
(1) Remove the left side cover. (See section 4.2.3)
(2) Remove the screw
(silver) and connector, and remove the belt motor .
(3) Remove the connector, and rotate the FAN (Fuser)
clockwisely to remove.
(4) Remove the connector and disengage the claw A (2 places), and remove the
cover open switch
.
(5) Remove the 2 screws
and connectors (2 places), and disengage the claw B (7
places). Remove the high-voltage power supply
.
Air
Claw B
Claw B
Claw A
(Silver)
(Black)
CN4
CN2
CN3
CN1
TR-KTR-M
High-voltage power supply
Belt thermistor
Cover open switch
FAN(Fuser)
TR-YTR-C
4.2.18 MPT Assy
(1) Open the MPT Assy .
(2) Remove the stoppers (2 places) while pushing the arms (2 places) on MPT
Assy
outside, pull the supporters (2 places) in the direction of the arrow and
remove them, and remove the MPT Assy
.
Arm
Stopper (2 places)
Supporter (2 places)
