Oki C710 - Feeder Unit; Board-RSF;MPT Hopping Roller; Frame Assy Separator;Cover Front

43856301TH Rev.3
76 /
Oki Data CONFIDENTIAL
4. Component replacement

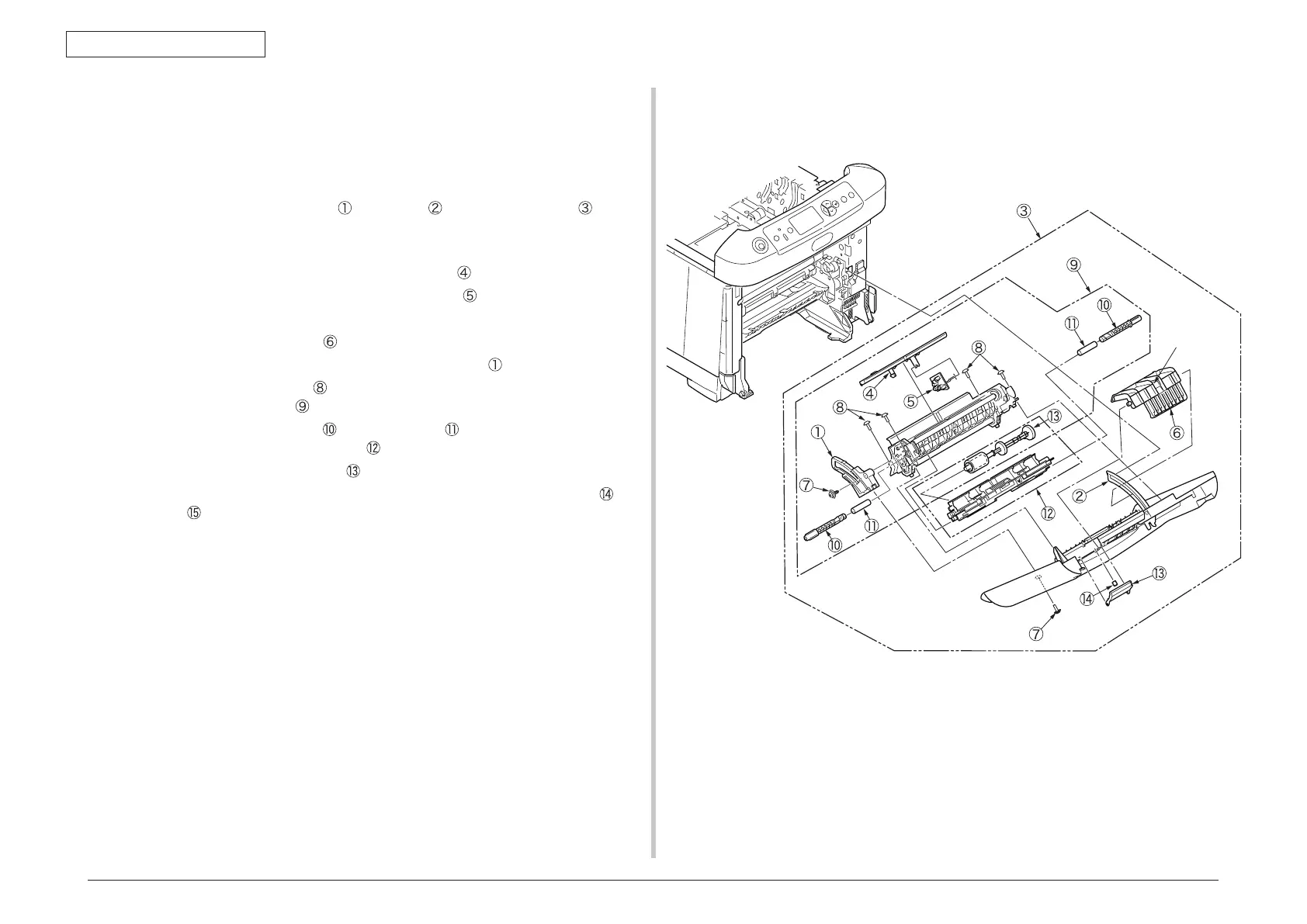

4.2.19 Feeder unit/ Board-RSF/MPT hopping roller/
Frame Assy separator/ Cover front
(1) Open the top cover.
(2) Remove the plate shield and remove the connector. (See section 4.2.8)
(3) Disengage the claws of stay L
and stay R , slide the feeder unit to right
and remove it.
(4)
Remove the motor cover. (See section 4.2.15)
(5) Disengage the claw, and remove the cover sensor
.
(6) Remove the connector and remove the Board-RSF
.
(7) Remove the MPT Assy. (See section 4.2.18)
(8) Rotate until the claw of lever
is disengaged, and remove it.
(9) Remove the two screws (Black), and remove the stay L
.
(10) Remove the four screws
(Black), disengage the claw B (2 places), and
remove the feeder Assy
.
(11) Remove the two lock shafts
and two springs , and disengage the claws (4
places) and remove the guide Assy
.
(12) Remove the hopping roller shaft
.
(13) Remove the supporters (2 places), and remove the frame Assy separator
and
spring
.
Claw
