4. Component replacement
4.2.9 Print engine controller PCB
(1) Remove the plate shield Assy (PCL). (See section 4.2.8(1)-(3))

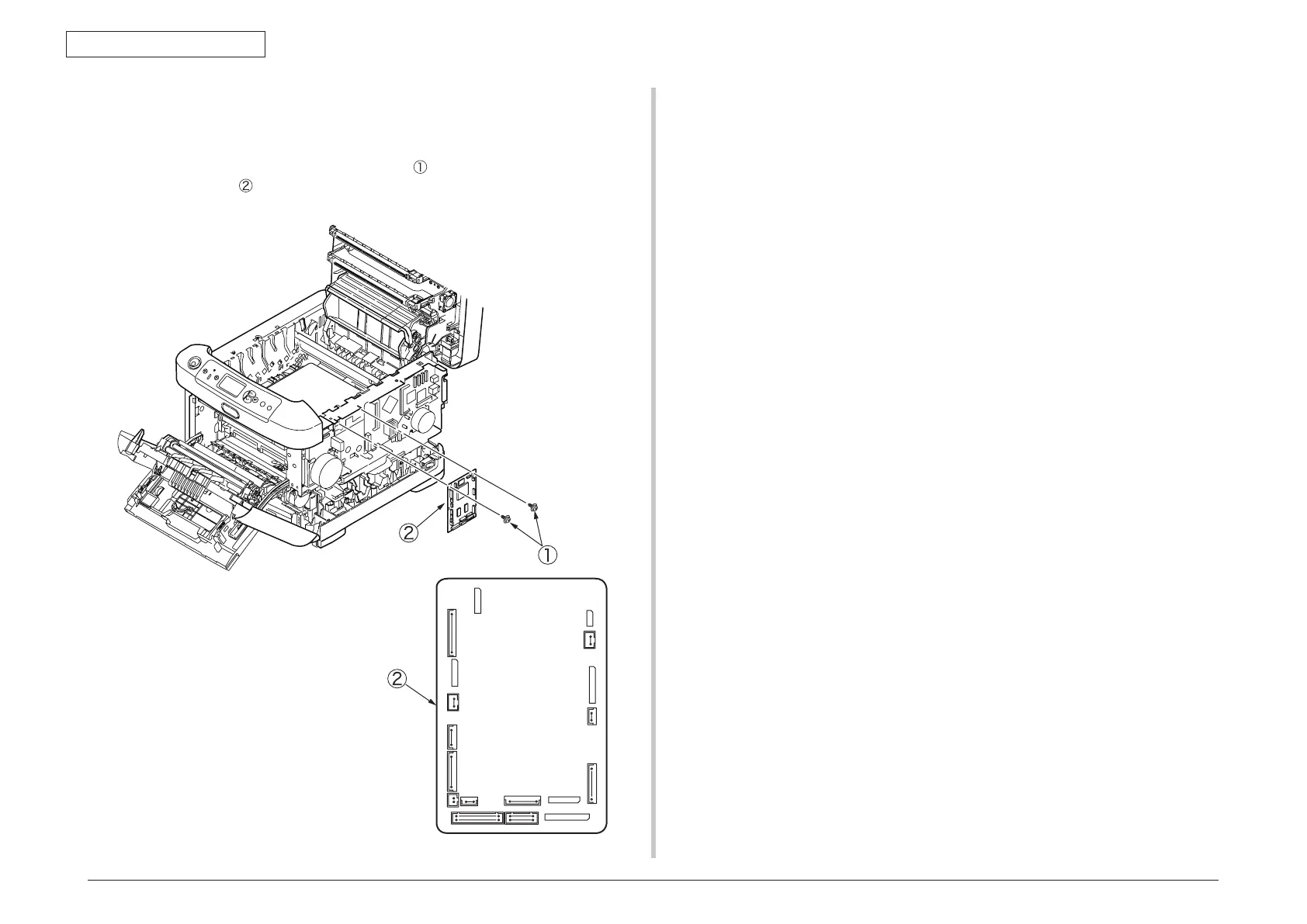

(2) Remove all connectors and two screws
(silver) to take the print engine
controller PCB
out.
DCHEAT
RELAY
POWER
OPTION
HVOLT
BELIDUP
CUIF
IDFAN
HOPSIZE
FSNS
PE
STKFL
RFID
SSNS
DCID
OPE
POWFAN
HSOL
Print engine
controller PCB
