Oki C710 - Fuser Assy

43856301TH Rev.3
86 /
Oki Data CONFIDENTIAL
4. Component replacement

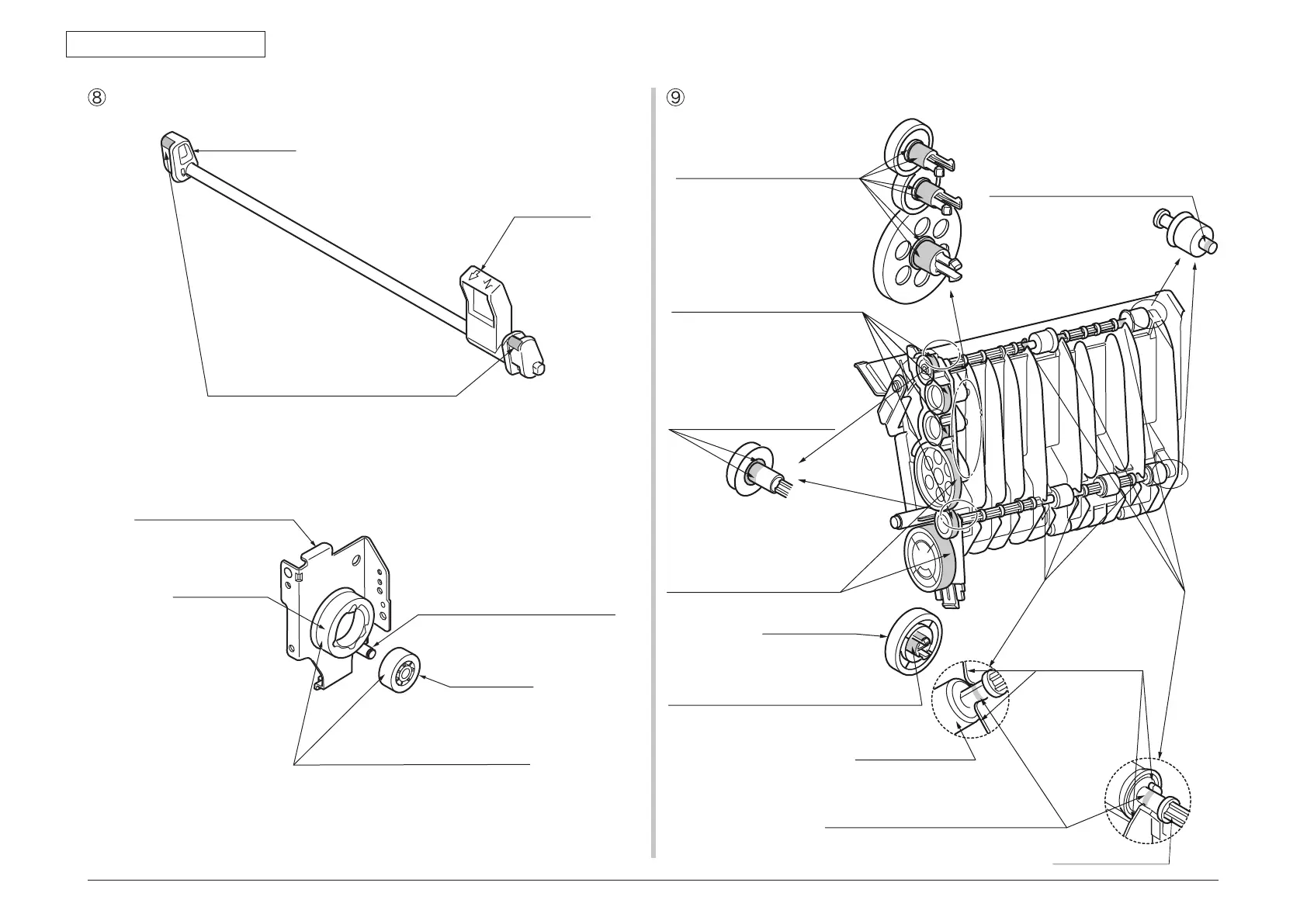

Fuser Assy Guide-Assy. -Eject-U
Gear-Idle-(Z21)
Plate-Side-R-Caulking (Fuser)
Gear-Fuser-(Z35)
EM-30L Class C
Spread HP-300 evenly on the patching parts.
Lever-Release
Do not spread the grease on these gears.
Do not spread the grease on this post.
Cam-Release
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly
on the surface of the posts (rotor
insert-in stands) and the flanges.
Do not touch the paper
feeding surface with grease.
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly
on the gear tooth surfaces.
EM-30L Class C
Spread MOLYKOTE (EM-30L)
evenly on the surface of the shafts
and the flanges.
Do not touch the paper feeding
surface.
EM-30L Class C
Spread MOLYKOTE (EM-30L)
evenly on each gear tooth surface
(3 places).
Gear-Idle-Exit-Z41
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly
on the surface of the post (rotor insert-in stand).
Shaft-Assy.-Eject(FU)
EM-30L Class B
Spread a small amount of MOLYKOTE
(EM-30L) on the surface of the shaft.
Do not touch the paper feeding surface.
Shaft-Assy.-Eject(FD)
EM-30L Class C
Spread MOLYKOTE (EM-30L)
evenly on the surface of the shaft.
Do not touch the paper feeding surface.
