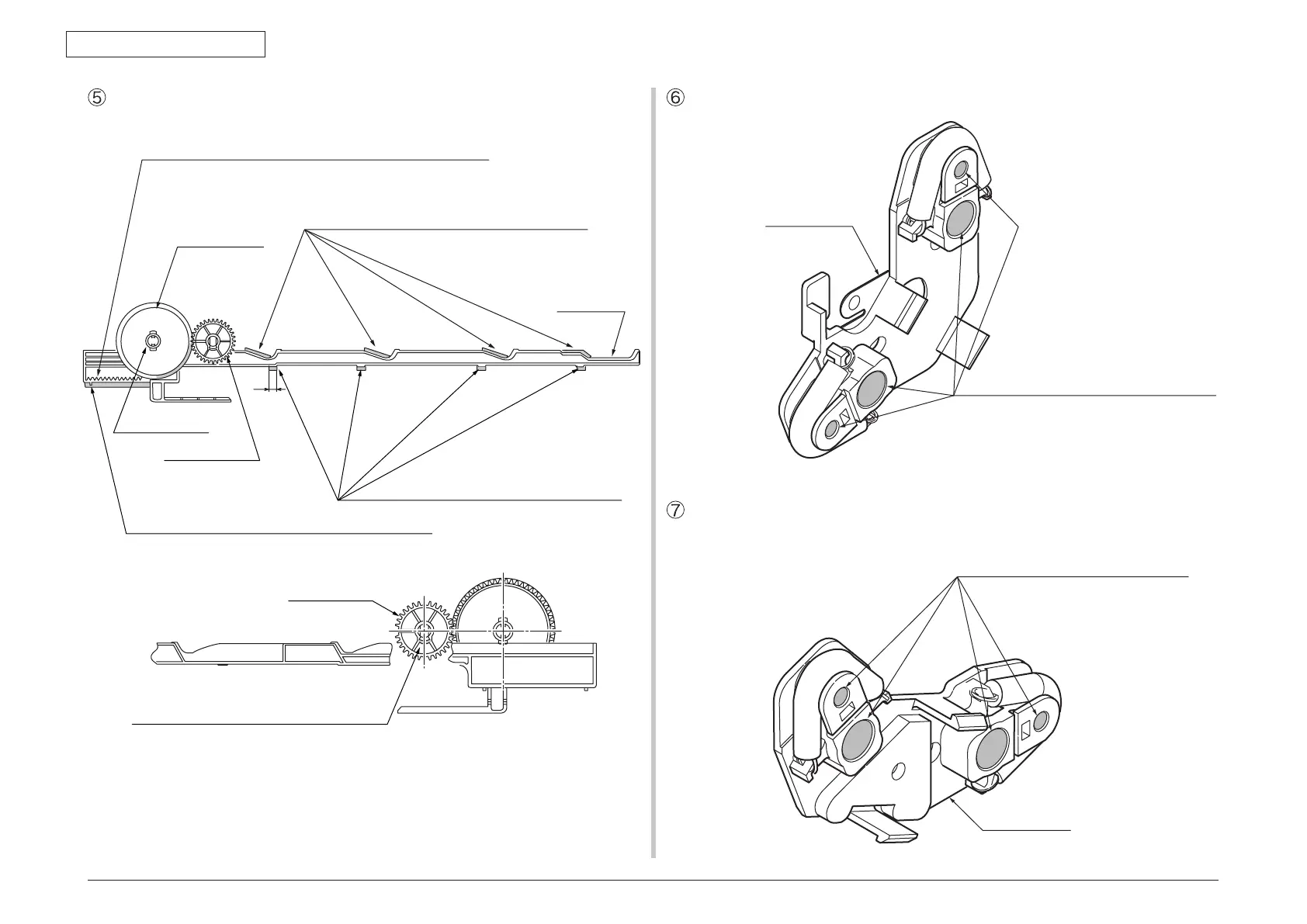

4. Component replacement
Plate-Assy.-Side L
(5)
EM-30L Class A
Spread a small amount of MOLYKOTE (EM-30L) on the
patching parts.
Link-LiftUp-L
EM-30L Class A
Spread a small amount of MOLYKOTE
(EM-30L) on the patching parts.
Gear-LiftUp-Z32
Post-GearIdle-L
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the patching part.
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the gear tooth top surface.
Gear-LiftUp-Z56
Gear-LiftUp-Z32
EM-30L Class B
Spread a small amount of MOLYKOTE (EM-30L)
on the patching part.
Holder Assy.-Regist-L
Holder Assy.-Regist-R
Holder-Regist-L
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the
patching parts (rotor insert-in stands).
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the
patching parts (rotor insert-in stands).
Holder-Regist-R
