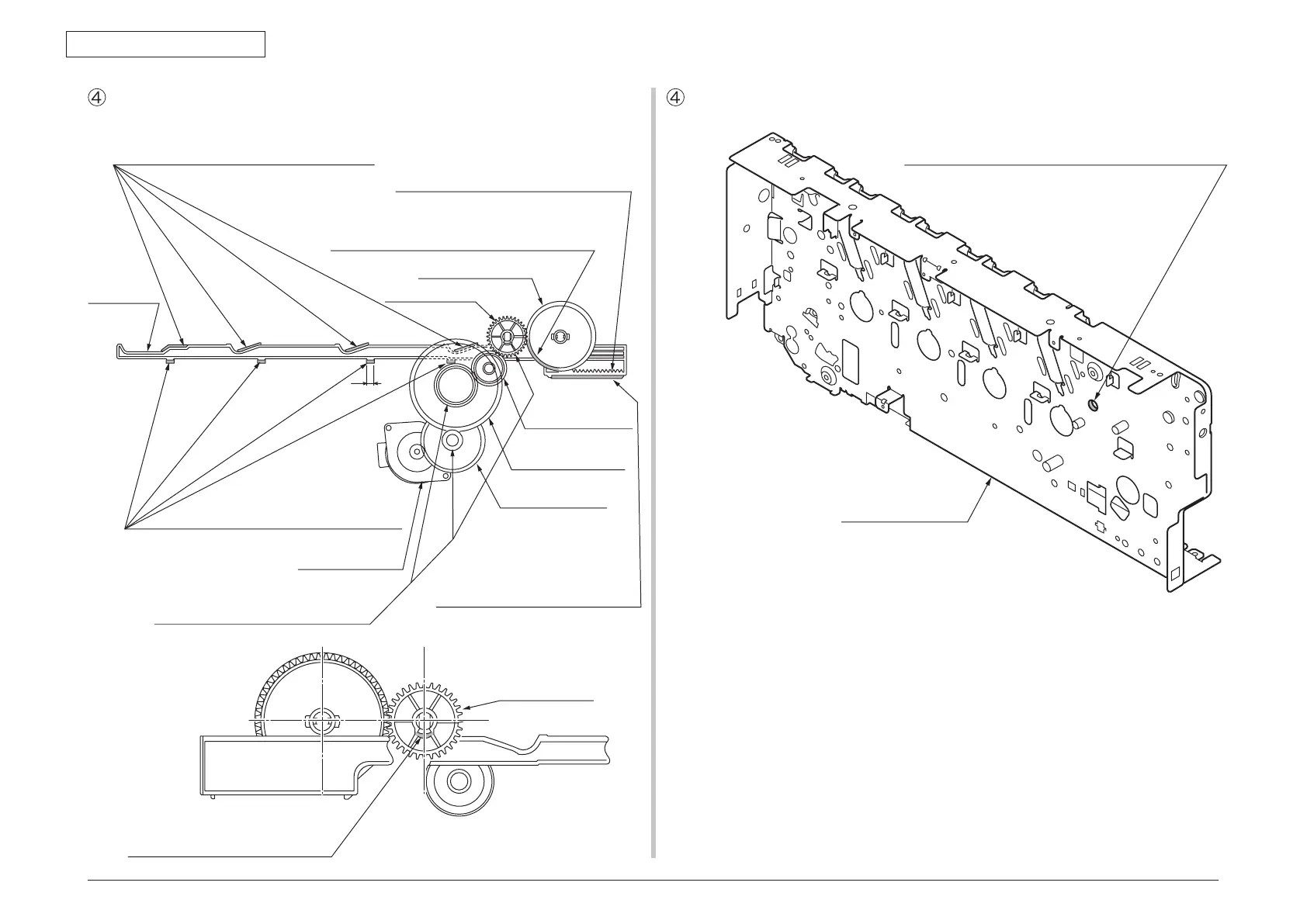

4. Component replacement
-4 Plate-Assy.-Side R
EM-30L Class A
Spread a small amount of MOLYKOTE (EM-30L)
on the patching parts.
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the gear
tooth surfaces of the patching part.
Gear-LiftUpR-Z32
Gear-LiftUpLinkR-Z56
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the
gear tooth top surfaces.
Link-LiftUp-R
Motor-Pulse-LiftUp
EM-30L Class A
Spread a small amount of MOLYKOTE
(EM-30L) on the patching parts.
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly all
around on the gear tooth surfaces.
Gear-LiftUp-Z83Z25
Gear-LiftUp-Z121Z34
Gear-IdleLiftUp-Z28
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly
on the patching parts.
Gear-LiftUpR-Z32
EM-30L Class B
Spread a small amount of MOLYKOTE
(EM-30L) on the patching part.
(5)
-5 Plate-Assy.-Side R
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on the bearing surface.
Plate Side R (Caulking)
