Oki C710 - Frame Panel Assy

43856301TH Rev.3
72 /
Oki Data CONFIDENTIAL
4. Component replacement
(8) Remove the lever lock
, compression spring , torsion spring , button
switch
, cable Assy from the frame panel .
⑧
⑦
⑤
③
⑥
④
Frame panel Assy

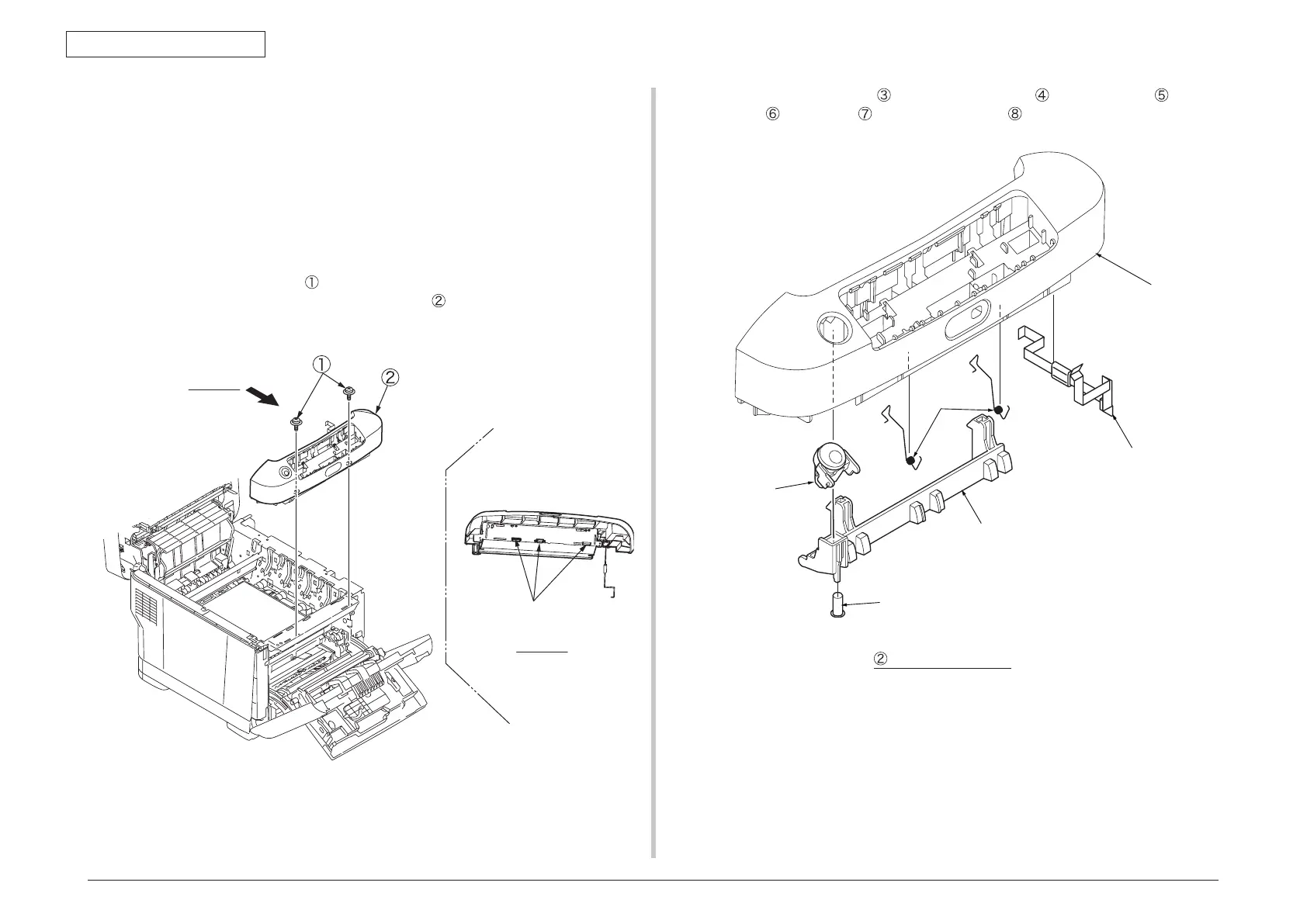

4.2.14 Frame panel Assy
(1) Open the top cover.
(2) Open the feeder unit.
(3) Remove the right side cover. (See section 4.2.4)
(4) Remove the plate shield Assy. (See section 4.2.8 (3))
(5) Remove the connector of frame panel Assy and remove the hanging cable.
(6) Remove the control panel Assy.(See section 4.2.12)
(7) Remove the two screws
(silver), disengage the claws (3 places) on frame
panel Assy, and remove the frame panel Assy
.
Claw (3 places)
View A
View A
