4. Component replacement
4.3 Oiling spots
Class
Spreading amount (cc)
W(mm)
Sample
S A B C D E F
0.0005 0.003 0.005 0.01 0.03 0.05 0.1
1.24 2.25 2.67 3.37 4.86 5.76 7.26
W
This chapter shows the oiling spots. Do not oil the other spots that are not shown here.
It is not necessary to inject the machine-oil during disassembling. However, please add
the specified oil when you wipe the oil off.
Oiling operation
(1)
Oil type and name
EM-30L: MOLYKOTE
HP-300: MOLYKOTE
PM: Pan motor oil 10W-40 or ZOA 10W-30

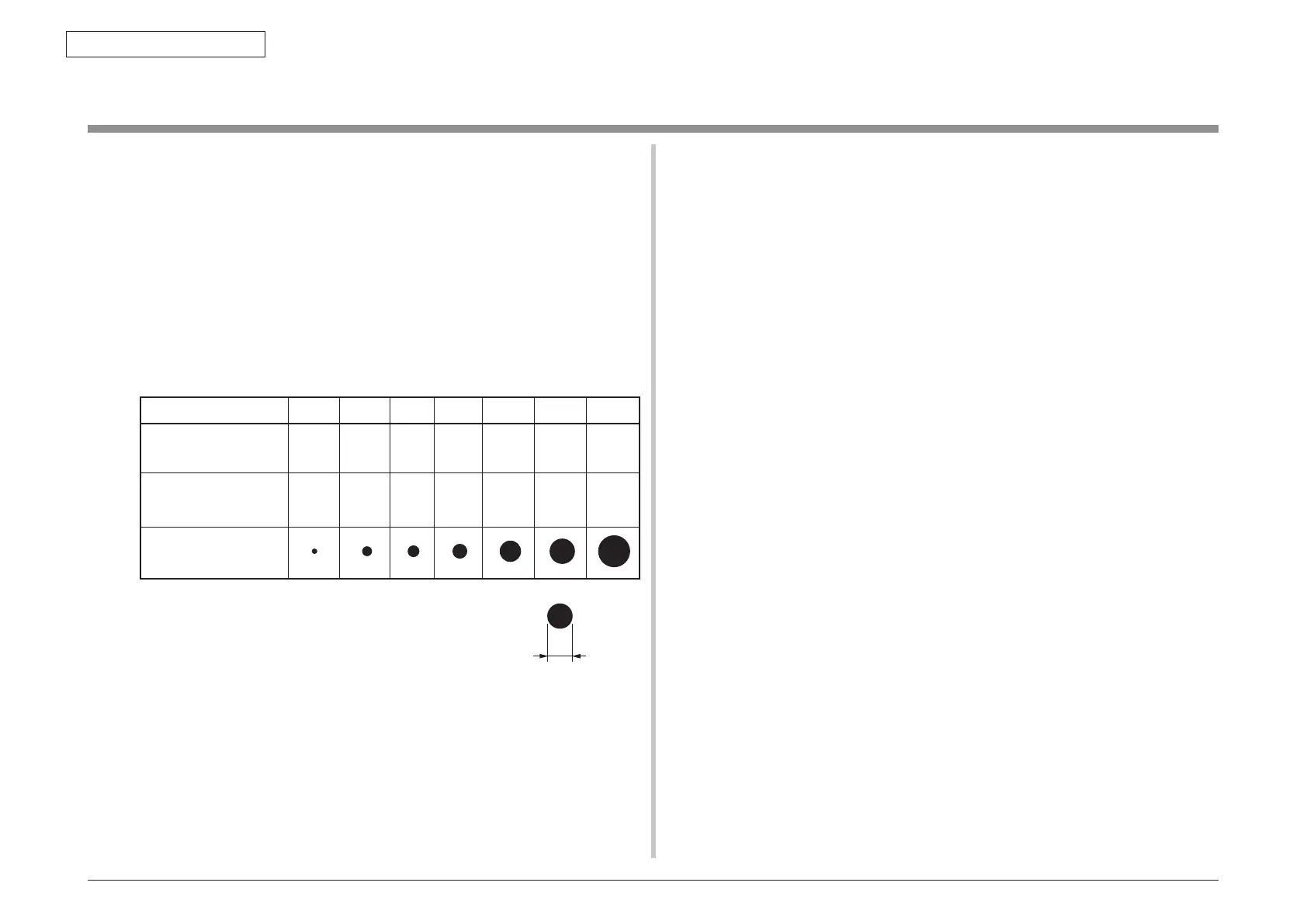

(2) Grease limit sample
