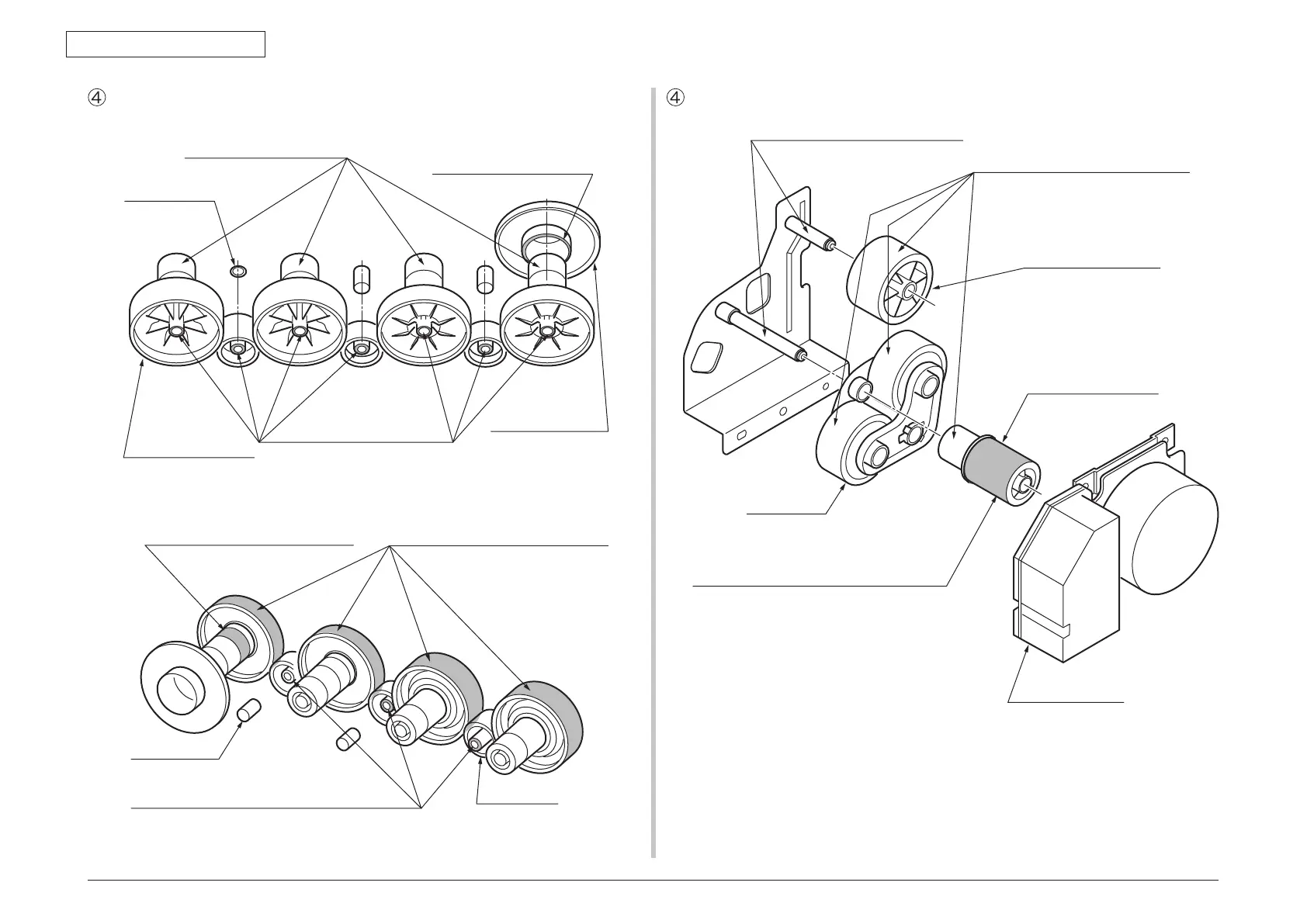

4. Component replacement
-2 Plate-Assy.-Side R
EM-30L Class F
Spread a heavy amount of MOLYKOTE
(EM-30L) on gear tooth surfaces for more
than 120 degree.
EM-30L Class C
Spread MOLYKOTE (EM-30L)
evenly on end surface.
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly on end surface.
EM-30L Class C
Spread MOLYKOTE
(EM-30L) evenly on end
surface.
Stopper-GearID
Gear-Idle-Z44
EM-30L Class C
Spread MOLYKOTE (EM-30L) evenly all
around on the patching parts.
Gear-Idle-DrumZ24-102
Gear-LiftUp-Z121Z34
Spacer-Coupling
Do not spread the grease here.
-3 Plate-Assy.-Side R
Motor-DC-FU-45M
EM-30L Class F
Spread a heavy amount of MOLYKOTE
(EM-30L) all around on the gear tooth surfaces.
Gear-Idle-Heat_Z14-Z32
Gear-Planet-
Gear-Idle-Heat_Z14-Z32
Do not spread the grease on these gears.
Do not spread the grease on these posts.
