To the POWER connector of the PU PCB
Note: 100V system shorting plug is mounted. 230V system shorting plug is not mounted.
Shorting plug for CN6
To the fuser unit I/F connector
CN3
CN6
CN2
CN1

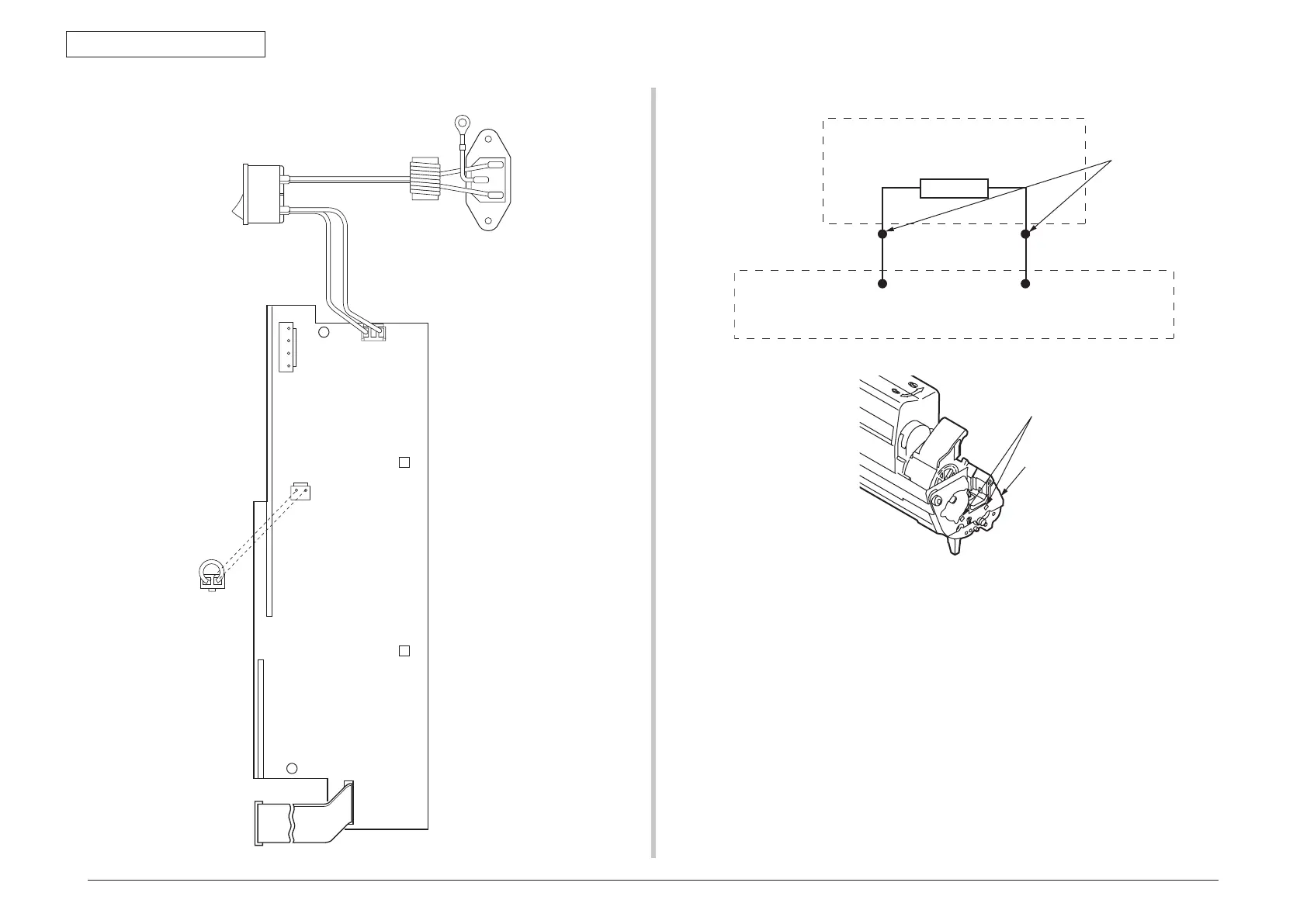

8. Connection diagrams
(13) Low-Voltage Power Supply PCB (14) ID unit
Fuse
Contactor point
ID unit
ID unit (for consumable parts)
Contactor point
Toner Low Sensor PCB (PRZ PCB)
