Oki C810 - Page 239

44015503TH Rev. 1
238 /
Oki Data CONFIDENTIAL

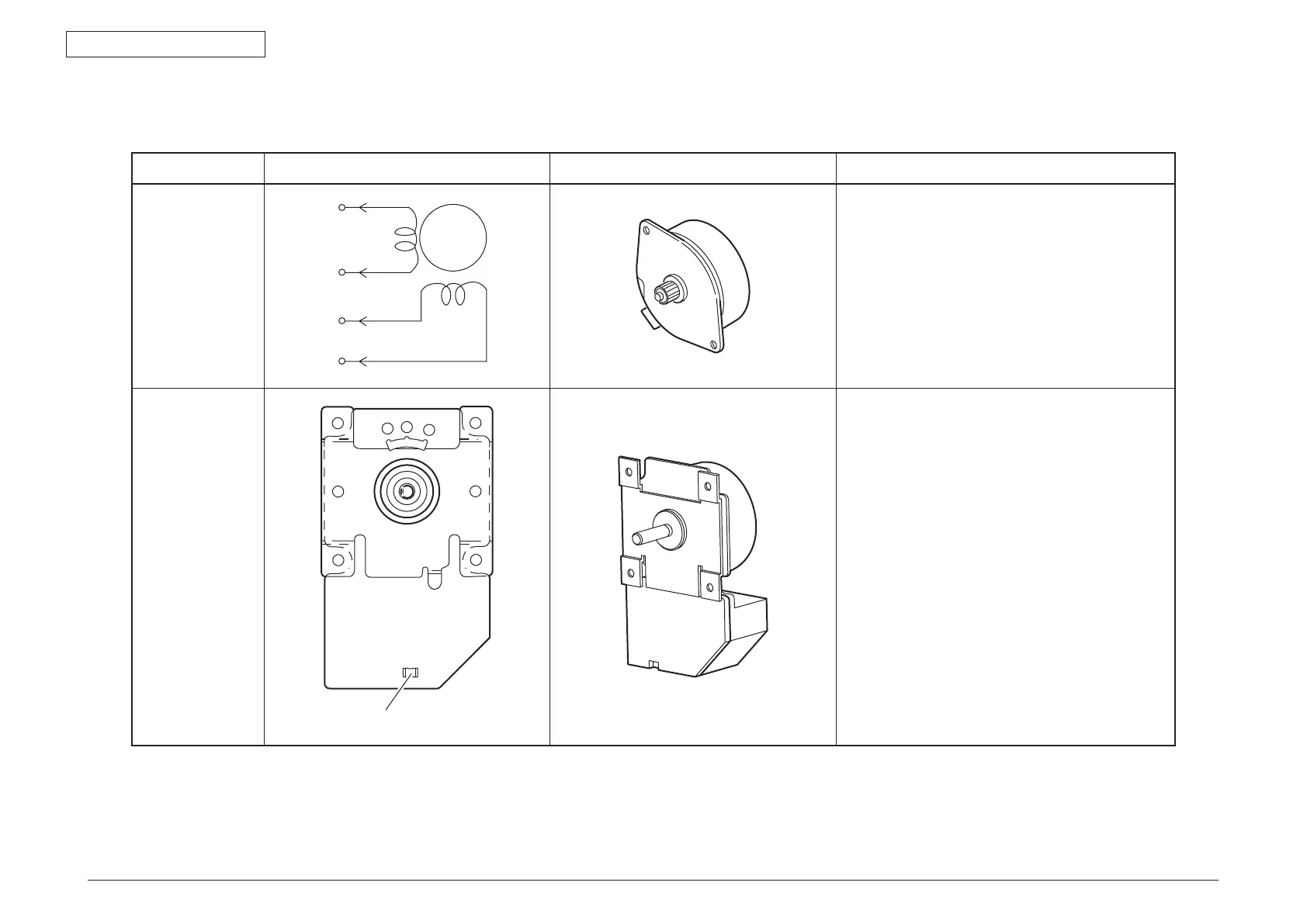

8. CONNECTION DIAGRAMS
Unit Electrical circuit diagram, connection Part outside view Resistance value
ID up/down motor
M
1
2
3
4
Between pin-1 and pin-2: 6.1
Ω
Between pin-3 and pin-4: 6.1
Ω
Fuser unit motor
IP1
Across both ends of IP1: 1
Ω
or less
