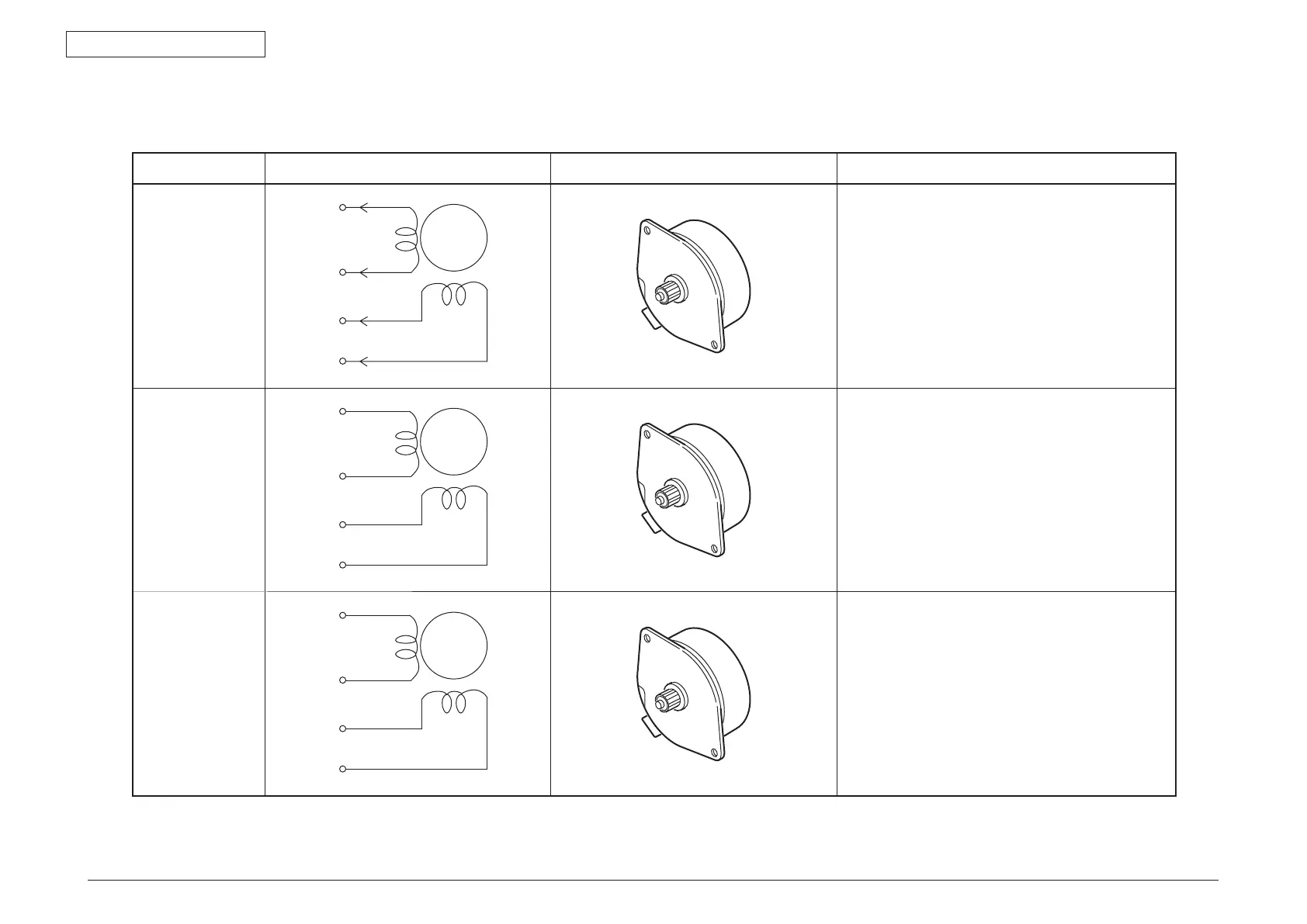

8. CONNECTION DIAGRAMS
Unit Electrical circuit diagram, connection Part outside view Resistance value
Feed motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Ω
Between pin-3 and pin-4: 3.4
Ω
Both-sided print
motor
M
1
2
3
4
Between pin-1 and pin-2: 2.4
Ω
Between pin-3 and pin-4: 2.4
Ω
2nd tray feed motor
M
1
2
3
4
Between pin-1 and pin-2: 3.4
Ω
Between pin-3 and pin-4: 3.4
Ω
