3. INSTALLATION

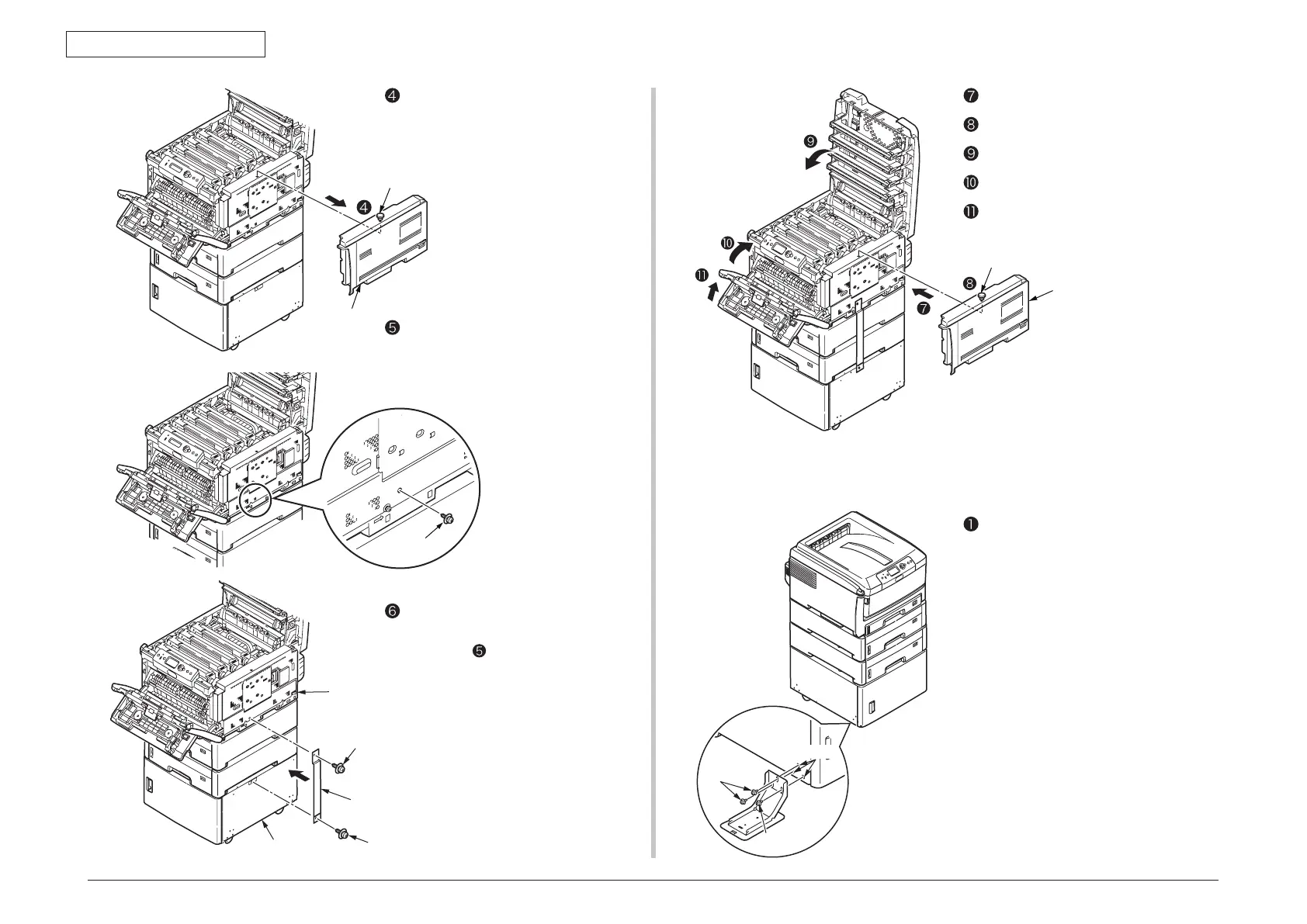

Loosen a screw to detach the side
cover of the printer.
Unscrew the screw.
Note! T
he screw is used to install the
support plate, so make sure to
keep it.
Cabinet
Screw
Screw
Printer
Support plate
Install the support plate to the printer
and cabinet with the screw unscrewed
in the step
.
Note! W
atch the shape of the support
plate to install it.
5. Attach anti-tip brackets.
Attach an anti-tip bracket (for the front
side) to the left side of the cabinet with
three screws.
Attach the side cover of the printer.
Fix the side cover with the screw.
Close the top cover.
Close the front cover.
Close the multi-purpose tray.
