Replacing Consumables
7-12
2

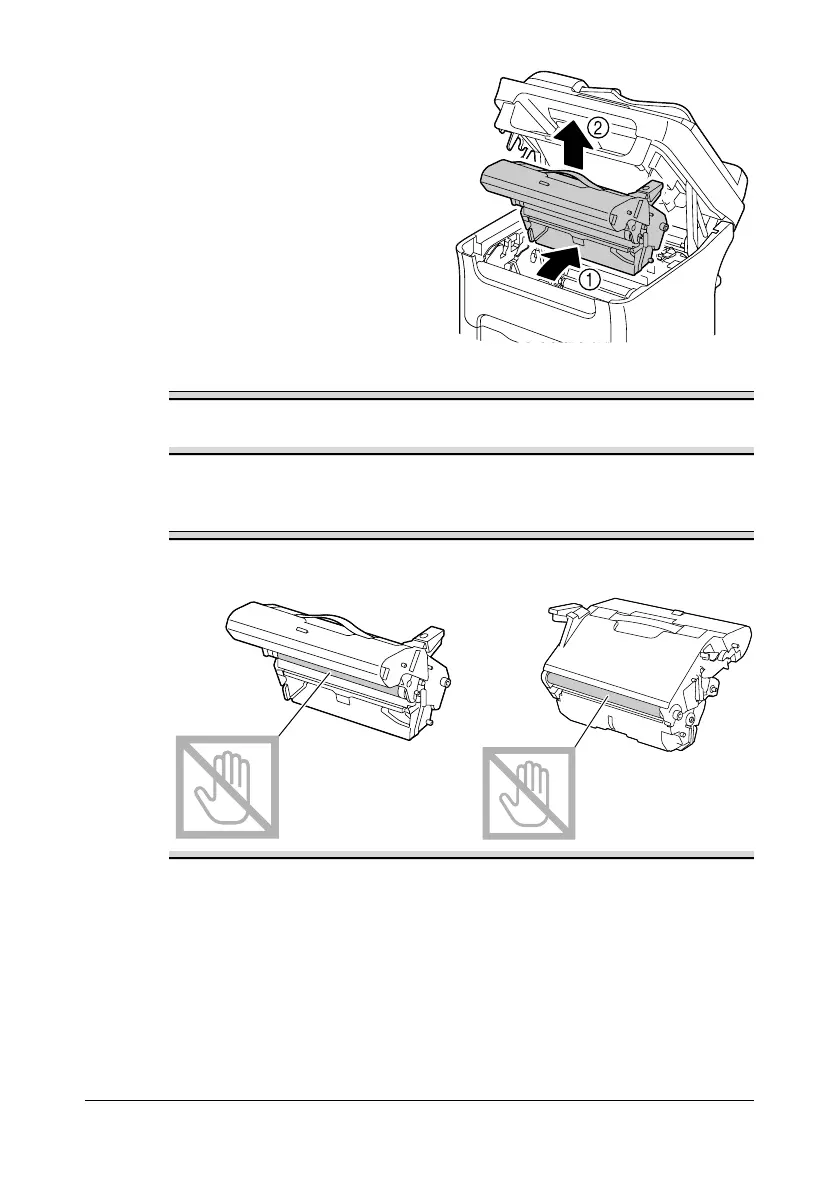

Grab the handle and lift it up
slightly to the back, and then
slowly pull the imaging cartridge
out vertically
.
Note
Dispose of the used
imaging cartridge accord
ing to your local
regulations. Do
not burn
the imaging cartridge.
3
Prepare the new imaging cartridge.
Note
Do not touch
the PC drum and th
e transfer belt on the
imaging
cartridge.
167
