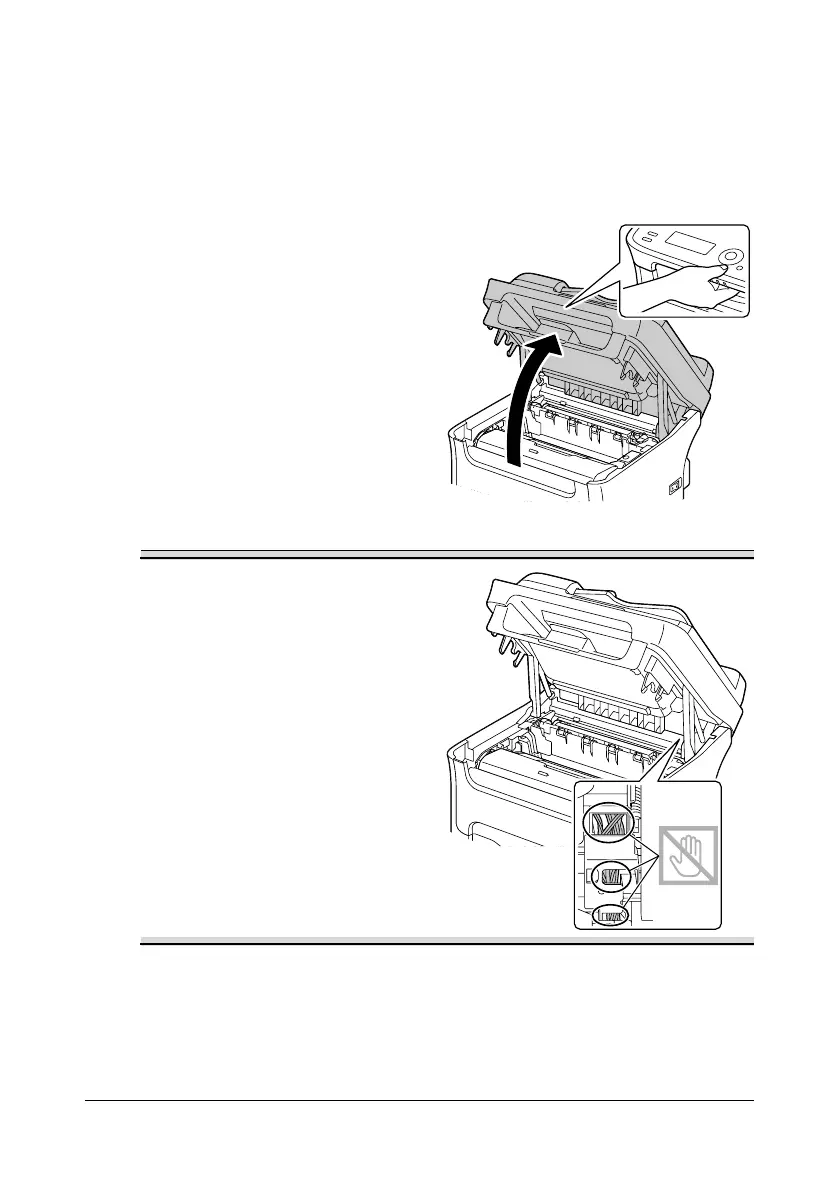

Cleaning the Machine
8-5
Media Rollers
The accumulation of paper dust and ot
her debris on the media rollers can
cause media-feeding problems.
Cleaning the Media Feed Roller
1
Open the scanner unit.
"
If there is paper in the
output tray
, remove it,
and then fold up
the out-
put tray before opening
the scanner unit.
Note
Do not touch the wires and flat
cable shown in the illustration
.
182
184
