Replacing Consumables
7-14
Note

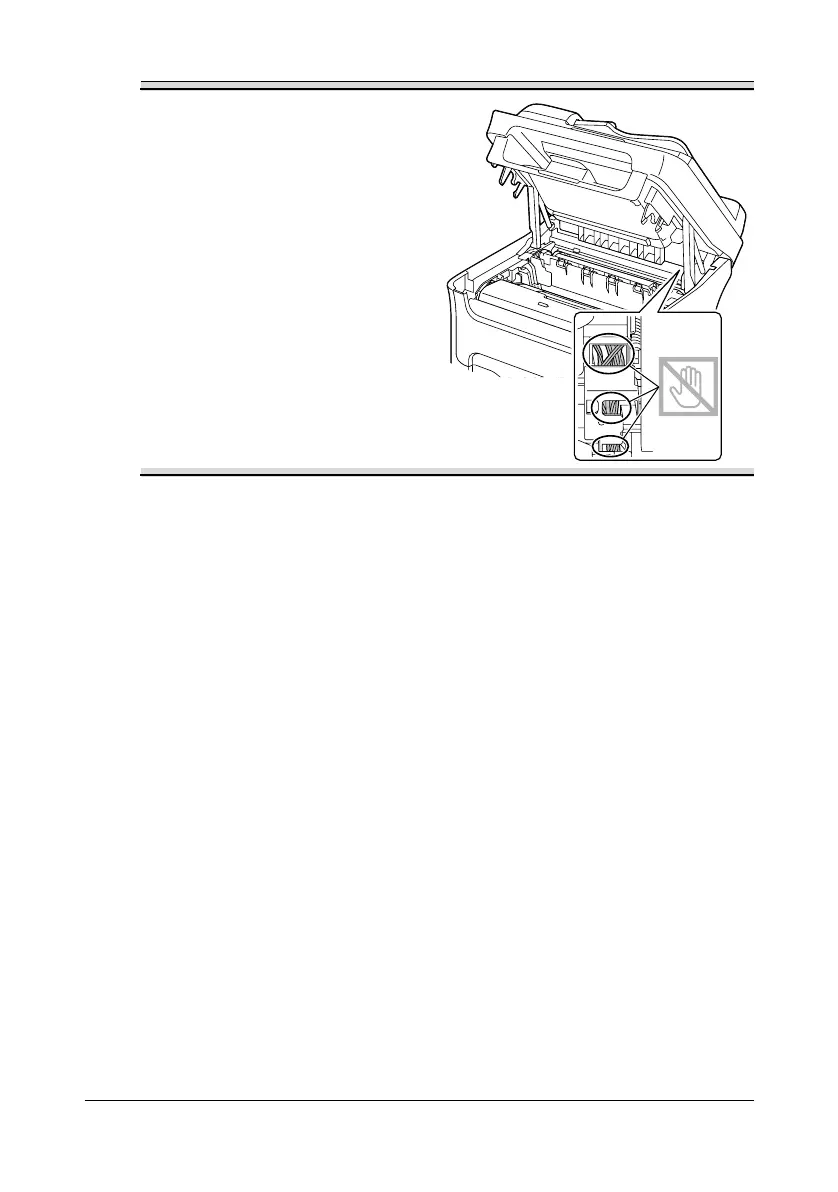

Do not touch the wires and flat
cable shown in the illustration
.
"
The machine must complete a
calibration cycle (less than 2 min-
utes) after the imaging cartridge has been re
placed. If you open
the scanner unit or fron
t cover before the machine is reset, th
e cal-
ibration stops, then starts over again after the cover is closed.
169
171
Table of Contents
