Replacing Consumables
7-21
9

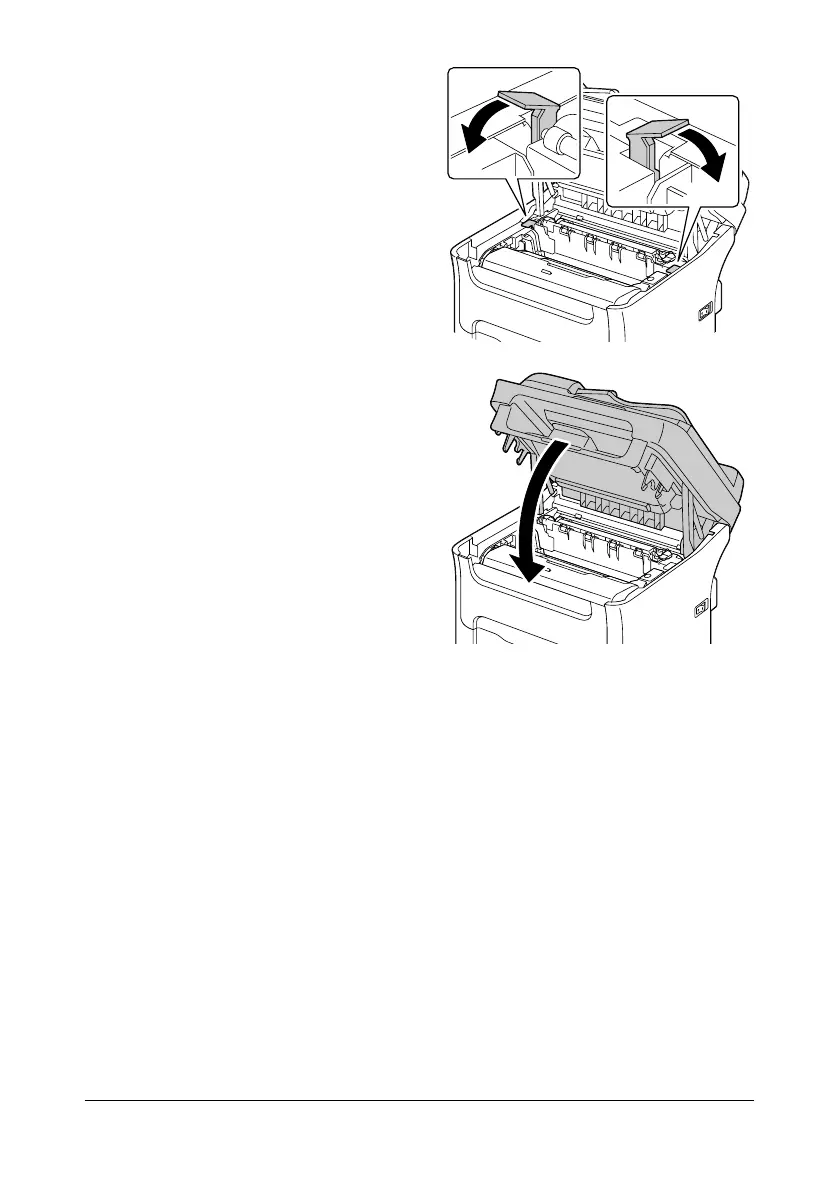

After the fuser unit is firmly
installed, flip the blue handles
down toward you.
10
Carefully close the scanner unit.
"
T
ake care
not to trap your fin-
gers when closing the scan-
ner unit.
