4.REPLACEMENT OF PARTS

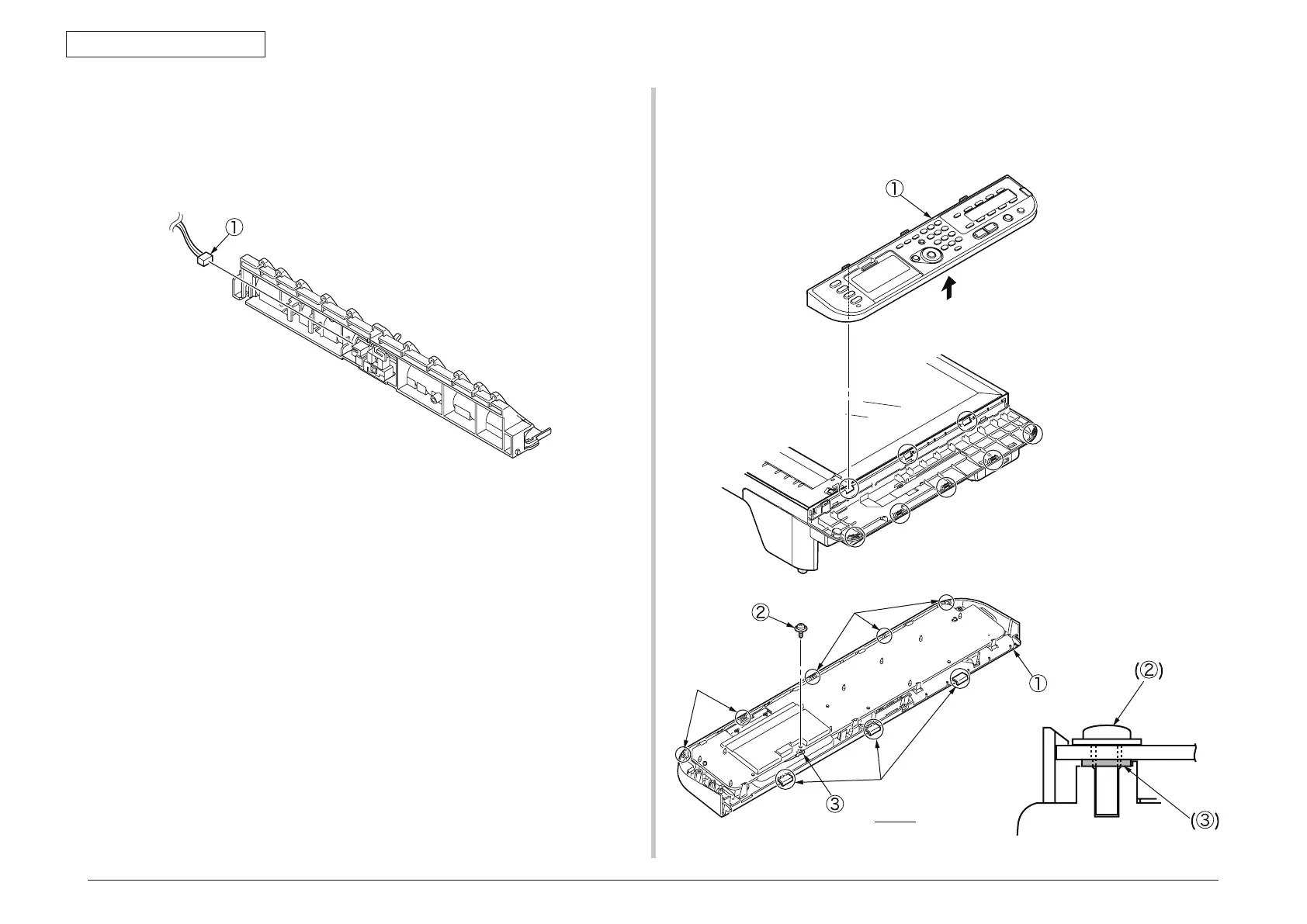

4.2.7.9 Cable (ADF-Reg SNS)
(1) Remove the cable
①
.
4.2.7.10 Frame-assy-OP
(1) Remove the eight claws to remove the frame-assy-OP
①
.
(2) Remove the screw
②
to remove FG cable
③
.
View A
View A
Claws
Claws
Claws
