4.REPLACEMENT OF PARTS
4.2.20 Feed rollers
(1) Remove the cassette.

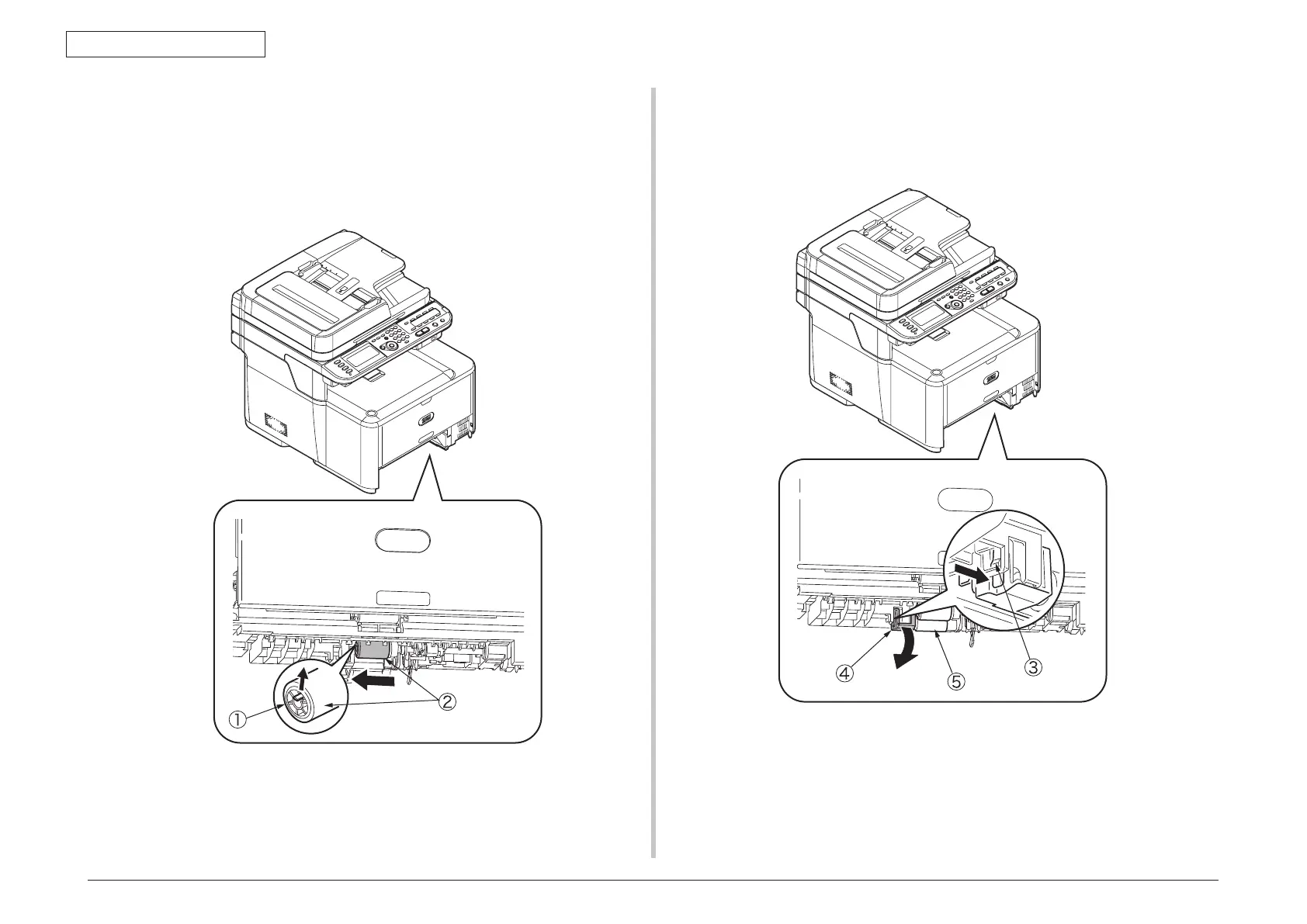

(2) Lift the tab
①
of the front paper feed roller outward, slide the front paper feed roller
②
to the left and remove it.
(3
) Press the tab
③
on the black cover attached to the left side of the rear paper feed
roller and open the black cover
④
downward.
(4
) Remove the rear paper feed roller
⑤
.
