Oki MC561 - Frame-MPT Assembly and Feeder Assembly

44473001TH Rev.1
117 /
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

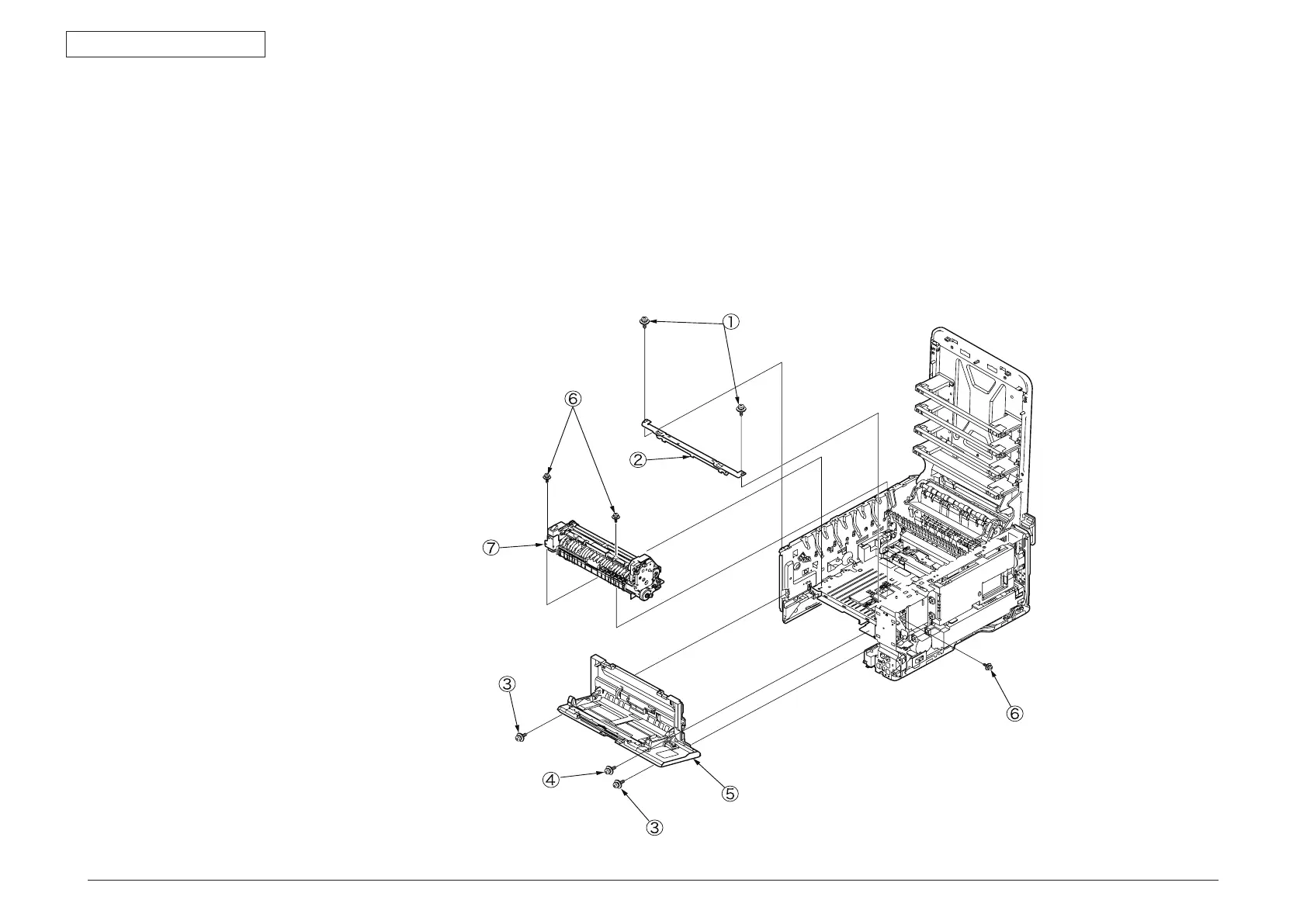

4.2.18 Frame-MPT assembly and feeder assembly
(1) Remove the left side cover, the right side cover, the rear cover, the hopping motor,
the plate shield assembly, the operator panel assembly, the cover-open switch and
the frame-MPT-side.
(2) Remove the RGSNS, HPSNS and MPC cables of the PU/CUPCB.
(3) Remove the two (silver-colored) screws
①
to remove the plate-front
②
.
(4
) Remove the two (silver-colored) screws
③
and the (black) screw
④
and unlatch the
two portions to detach the frame-MPT assembly
⑤
.
(5
) Remove the three (silver-colored) screws
⑥
to detach the feeder assembly
