Oki MC561 - Tray-Assy-Document; Cover-ADF-R-Assy

44473001TH Rev.1
97 /
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

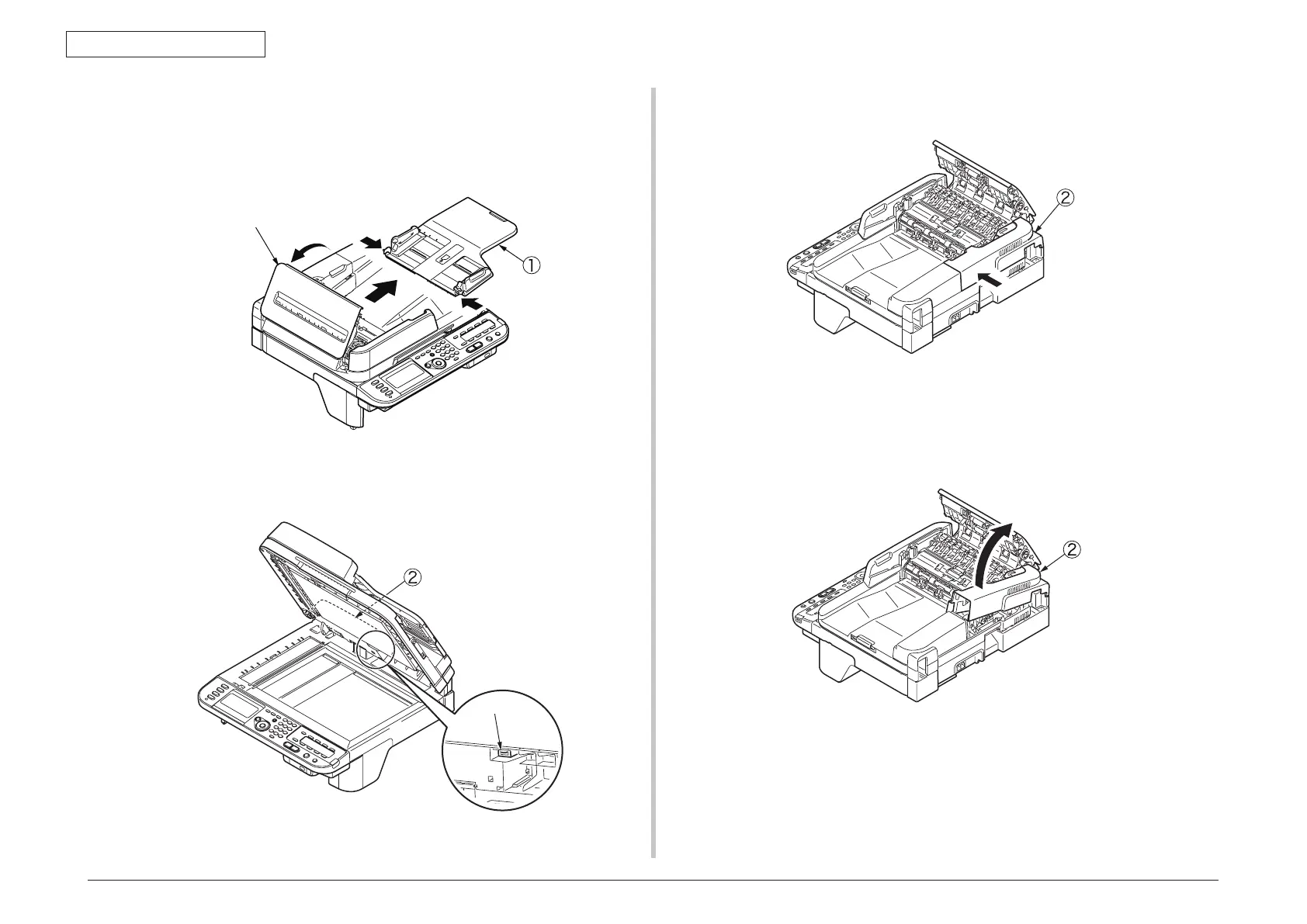

4.2.7.1 Tray-assy-document / Cover-ADF-R-assy
(1) Open the cover-assy-top-ADF .
(2) Remove the tray-assy-document
①
by pull it in the direction of the arrow.
(3
) Open the ADF-unit and push the claw of cover-ADF-R-assy
②
.
(4
) Push the portion A. (Concurrent to push the (3) )
(5) Remove the cover-ADF-R-assy
②
in the direction of the arrow.
Cover-assy-top-ADF
Claw
A
