4.REPLACEMENT OF PARTS
4.2.7.2 ADF-unit

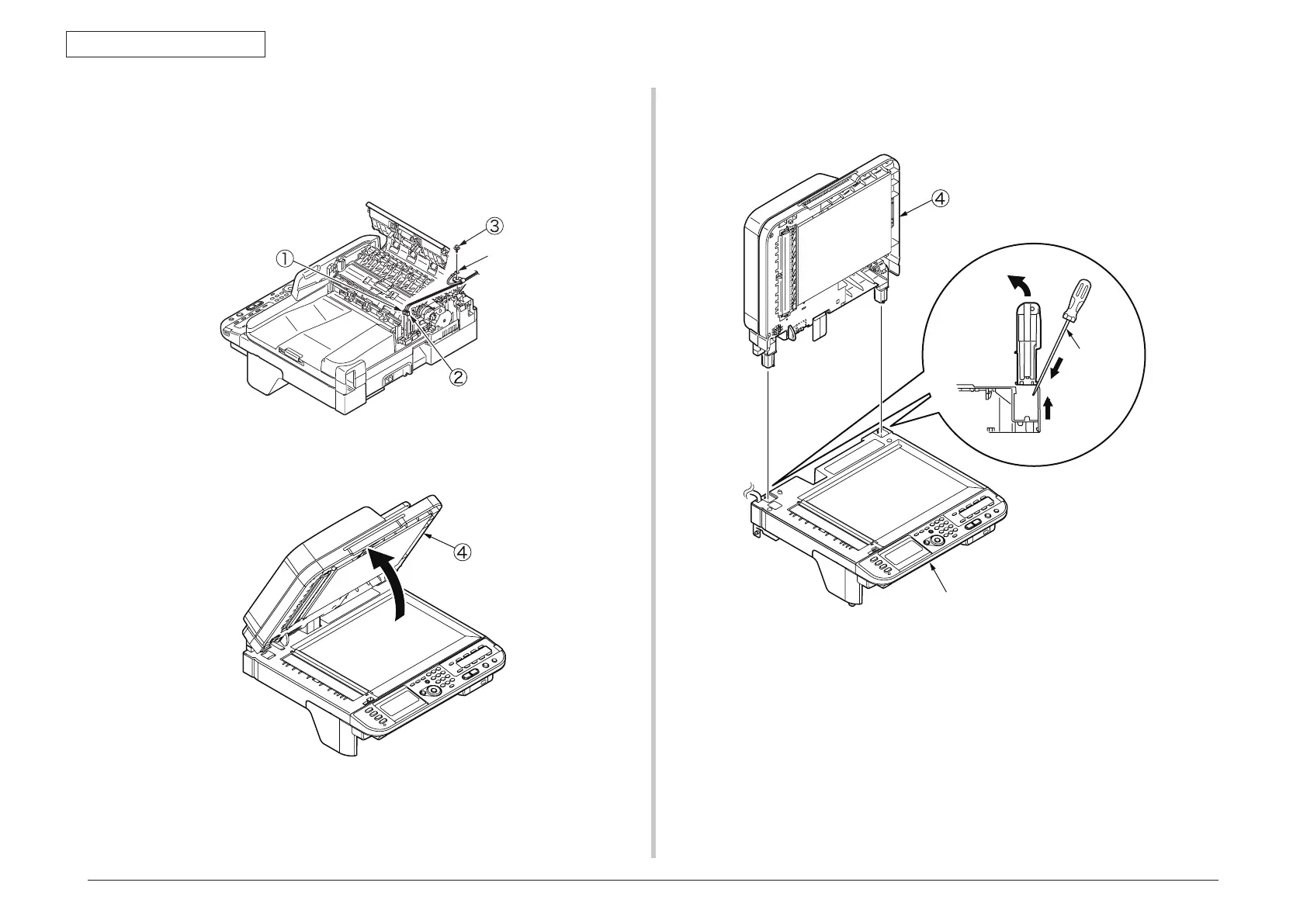

(1) Remove the cover-ADF-R-assy. (See 4.2.71)
(2) Detach a connector
①
and
②
from the ADF board (FX750), and remove the screw
③
to remove the FG cable.
FG cable
(2) Open the ADF-unit
④
.
(3) Remove the ADF-unit
④
by insert the screwdriver to gap between ADF-unit
④
and
flatbed-unit.
Flatbed-unit
Screwdriver (-)
