1. CONFIGURATION
1.5.3 Telephone Line Interface Specification
(Only MC561/MC361)
1.5.3.1 Outline of telephone Line Interface
The machine will reliably communicate with distant stations over voice-level telephone
line.
MC561/MC361 CHN-M is connectable only for erclncive use conversion equipment.
1.5.3.2 Telephone Line Interface Connector and Cable
Printer side : RJ-11
Cable side : TEL Cable (Cable with plug)

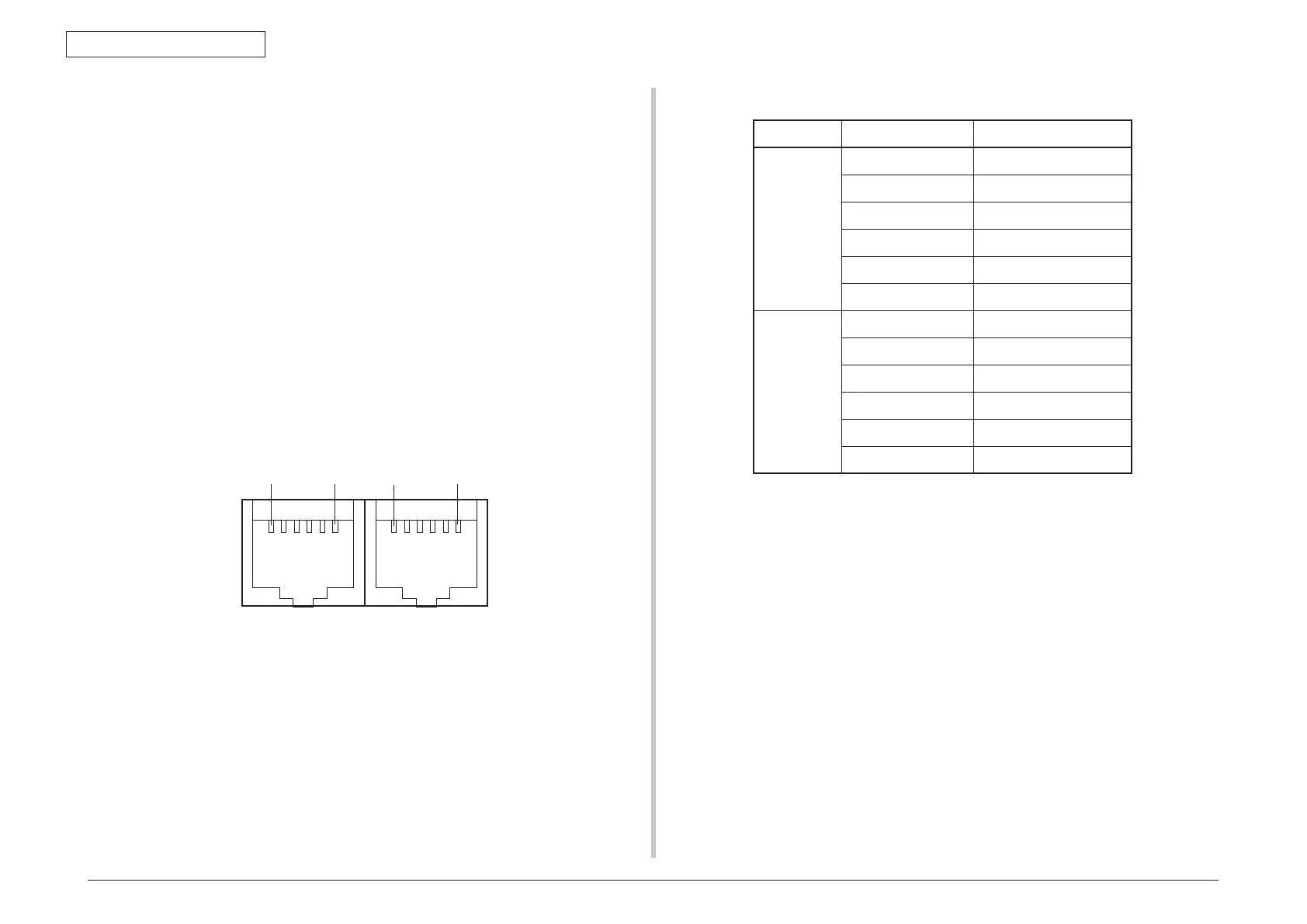

Connector contact arrengement
1.5.3.3 Telephone Line Interface signal
Contact No. Functions
TEL A1 Unspecified
A2 Unspecified
A3 TCP
A4 TCP
A5 Unspecified
A6 Unspecified
LINE B1 Unspecified
B2 Unspecified
B3 TCP
B4 TCP
B5 Unspecified
B6 Unspecified
TCP : Terminal Connection Point
A1 A6
B1 B6
TEL
LINE
1.5.3.4 USB Host Interface
USB A plug (male) connector
Connection devices
USB memory
Printer supply power: Maximum 500mA

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
