4.REPLACEMENT OF PARTS
For detail

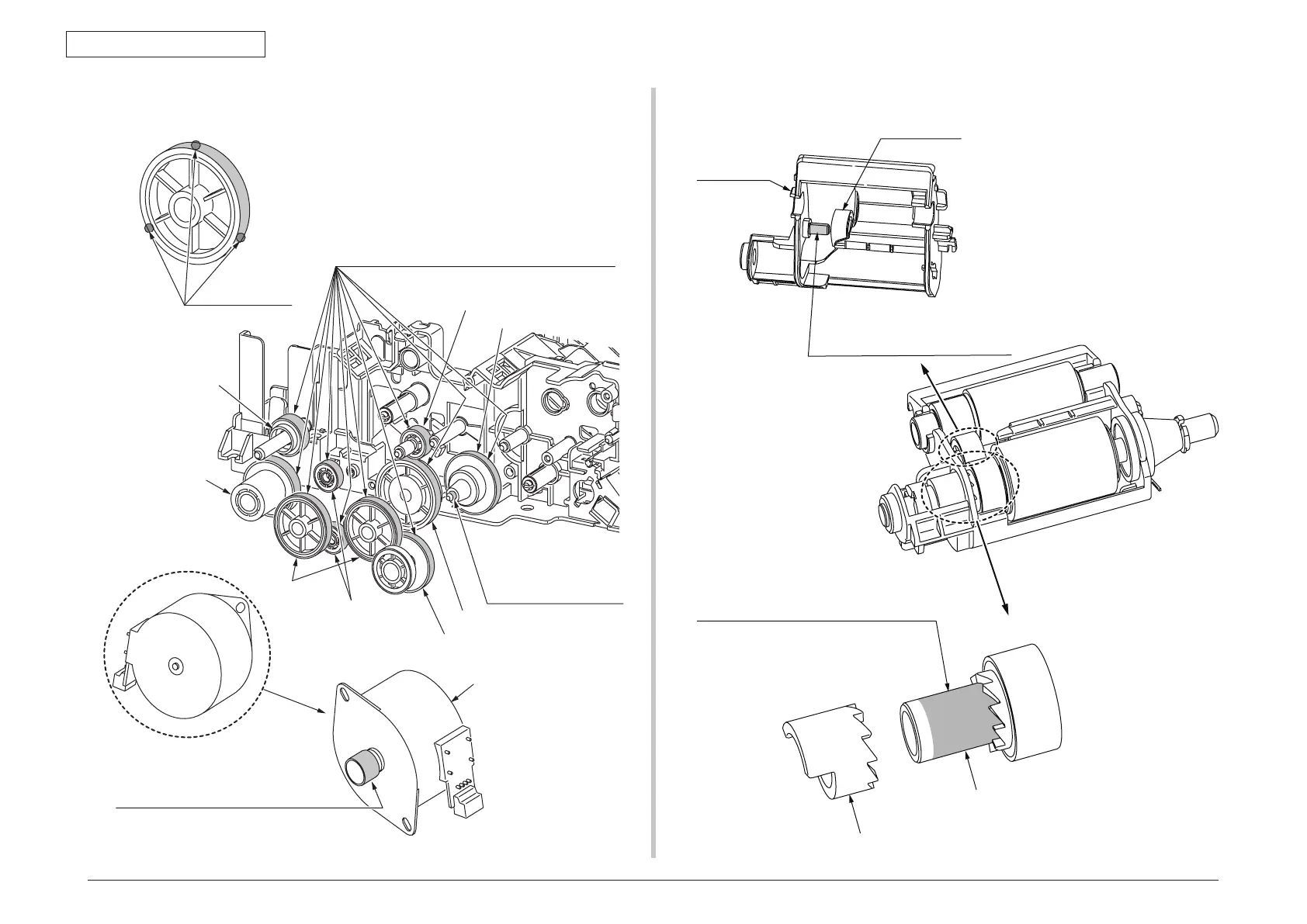

Gear-Double-Z26-42
Gear-Clutch
Gear-Double-
Z27-55
Gear-Double-Z31_44
Gear-Planet_Z19
Gear-TL-Sep_Z43-55
EM-30LP Class C
EM-30LP Class C
Gear-Planet
Gear-Drivet_Z44
EM-30LP Class C x 3
Motor-Z20
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the hatched area.
(all circumference )
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatched area.
(to the whole circle of gear tooth)
Apply to 3 places.
Apply a normal amount of MOLYKOTE to the hatched
area. (to 3 places on the gear tooth circle)
(Refer to detail)
④
44531101PA Frame-Assy-Hopping-ADF
Boss-Coupling
Gear-Feed-Z21
EM-D110 Class B
Fram e-Pickup
Gear-Planet
Apply a normal amount of MOLYKOTE
(EM-D110) to the hatched area.
(Boss-Coupling and Gear-Feed-Z21 sliding surfaces)
EM-30LP Class B
Apply a normal amount of MOLYKOTE
(EM-30LP)to the hatched area.
(All circumference of shaft)
