2. DESCRIPTION OF OPERATION
(9) Belt cleaning
Toner remaining on the transfer belt is scraped off by the belt cleaning blade and
collected into the waste toner box of the transfer belt unit.

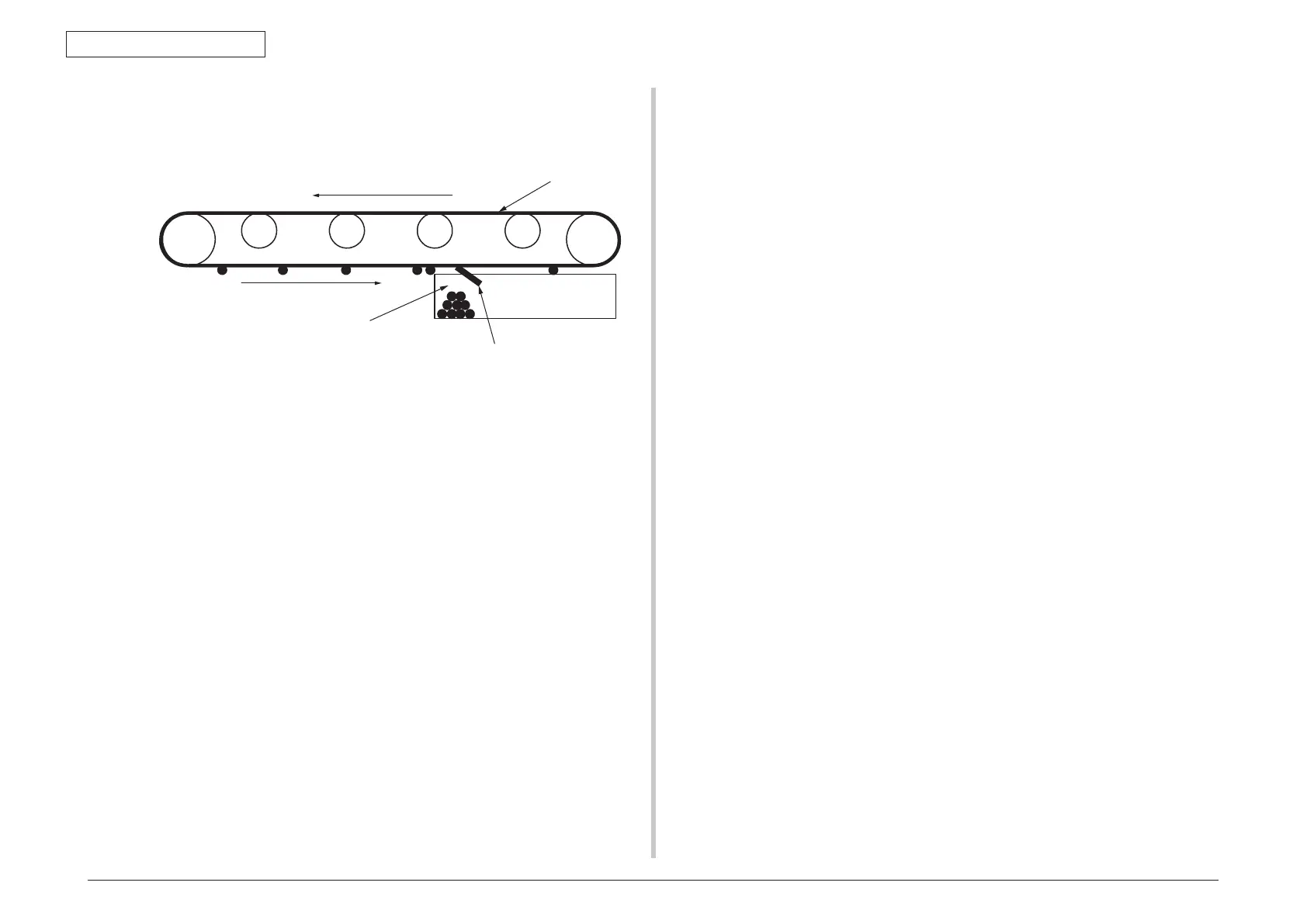

Belt waste toner box
Transport belt
Belt cleaning blade
