2. DESCRIPTION OF OPERATION
2.3.1.4 Document detection

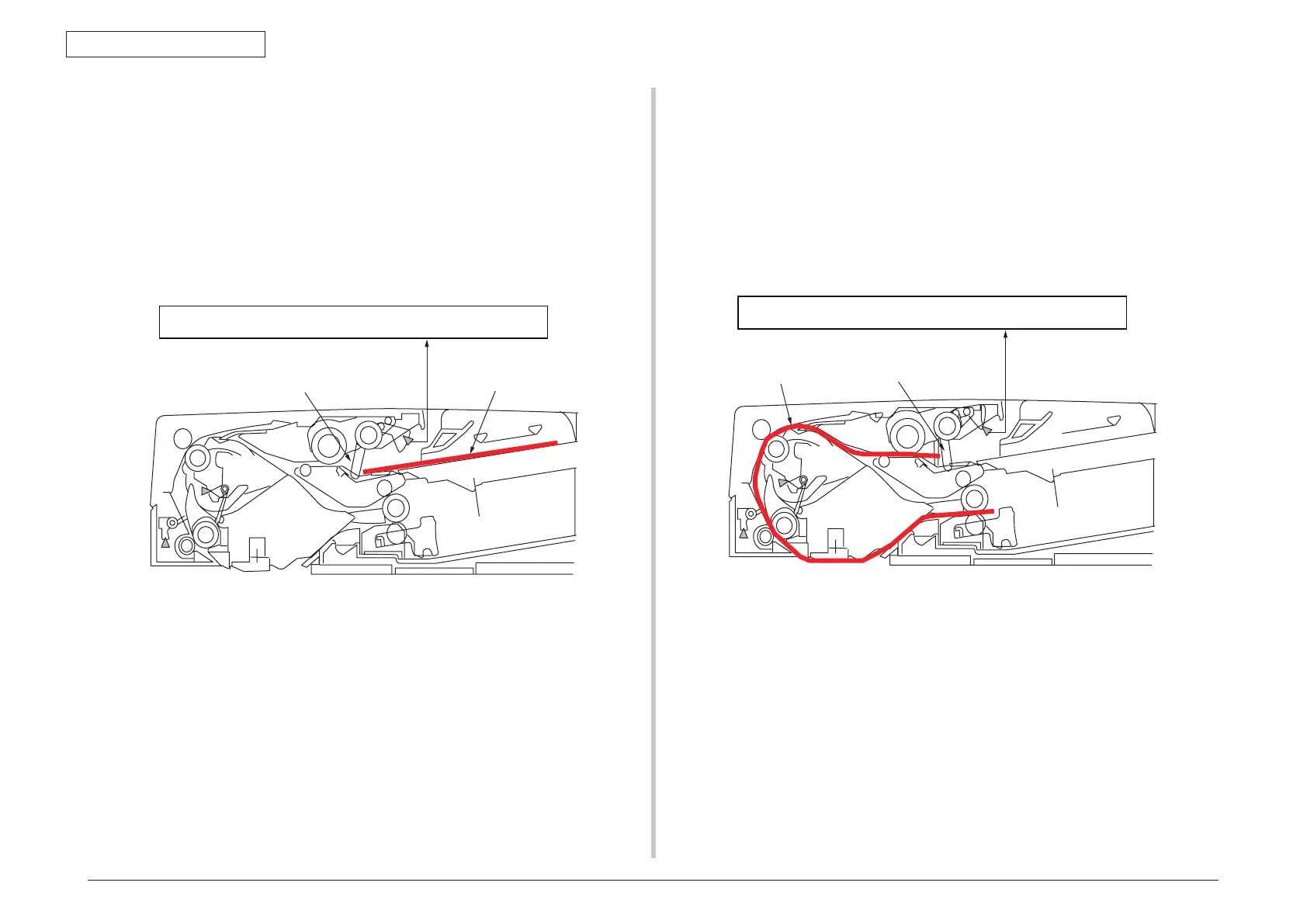

Document present/absent detection
Document present/absent detection on the document tray is performed by document set
sensor (PI14). When a document is placed on th edocument tray, the detection lever moves
together with the light-shielding plate so that photo interrupter that has been passing the light,
shut down the light. Thus, the document set sensor (PI14) issues the document detection
signal (SET) telling that a document is set, to the connected equipment via the ADF relay
PCB.
Detection of final document
The final document detection sensor (PI14) detect if the document that has started of the
final document has passed the set sensor lever, the detection lever moves together with
the light-shielding plate so that the photo interrupter that has been shtting down the light,
passes the light. Thus, the document set sensor (PI14) issues the final document detection
signal (SET) telling that the document under feeding is the final document, to the connected
equipment via the ADF relay PCB.
Detection lever
Document
ADF relay PCB
SET
PI14
Detection lever
SET
Document
PI14
ADF relay PCB

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
