- 178 -
9. Troubleshooting
15

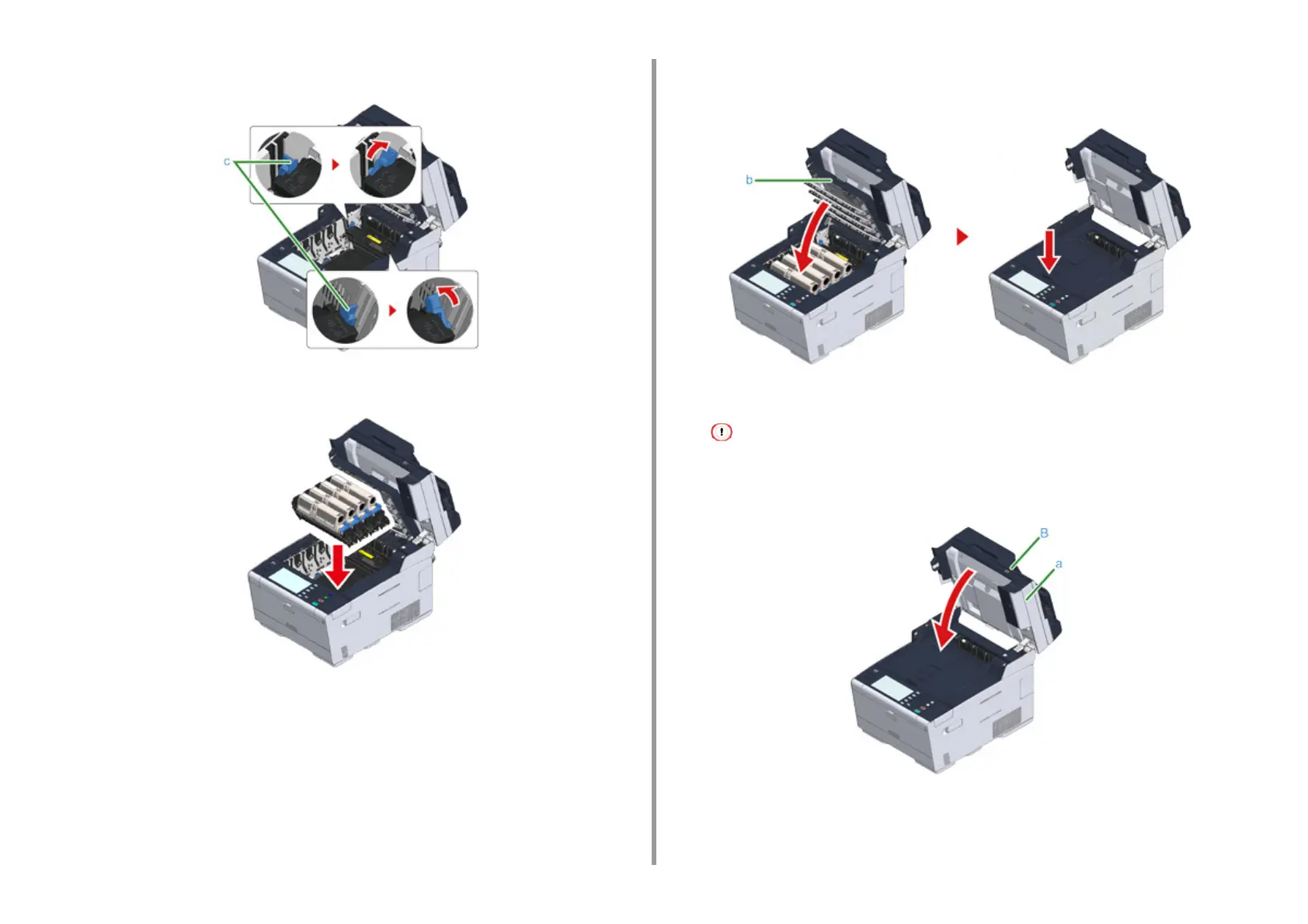

Tilt the lock levers (c) on the both sides of the fuser unit.
16
Replace the four image drums into the machine
17
Close the output tray (b) slowly and push the center of the output tray for
confirmation.
18
Hold the handle (B) to close the scanner unit (a).
Do not close the scanner unit vigorously. It may cause the document feed roller of ADF to fall and get in the way
of loading documents.
If the document feed roller of ADF has fallen, open and close the ADF cover.
To Next Page
