3. Basic Operations
Basic Operations on the Operator Panel
This section describes the operator panel of the machine.
• Names and Functions
• Name and Functions on the Touch Panel
• Adjusting the Angle of the Operator Panel
• Entering Characters

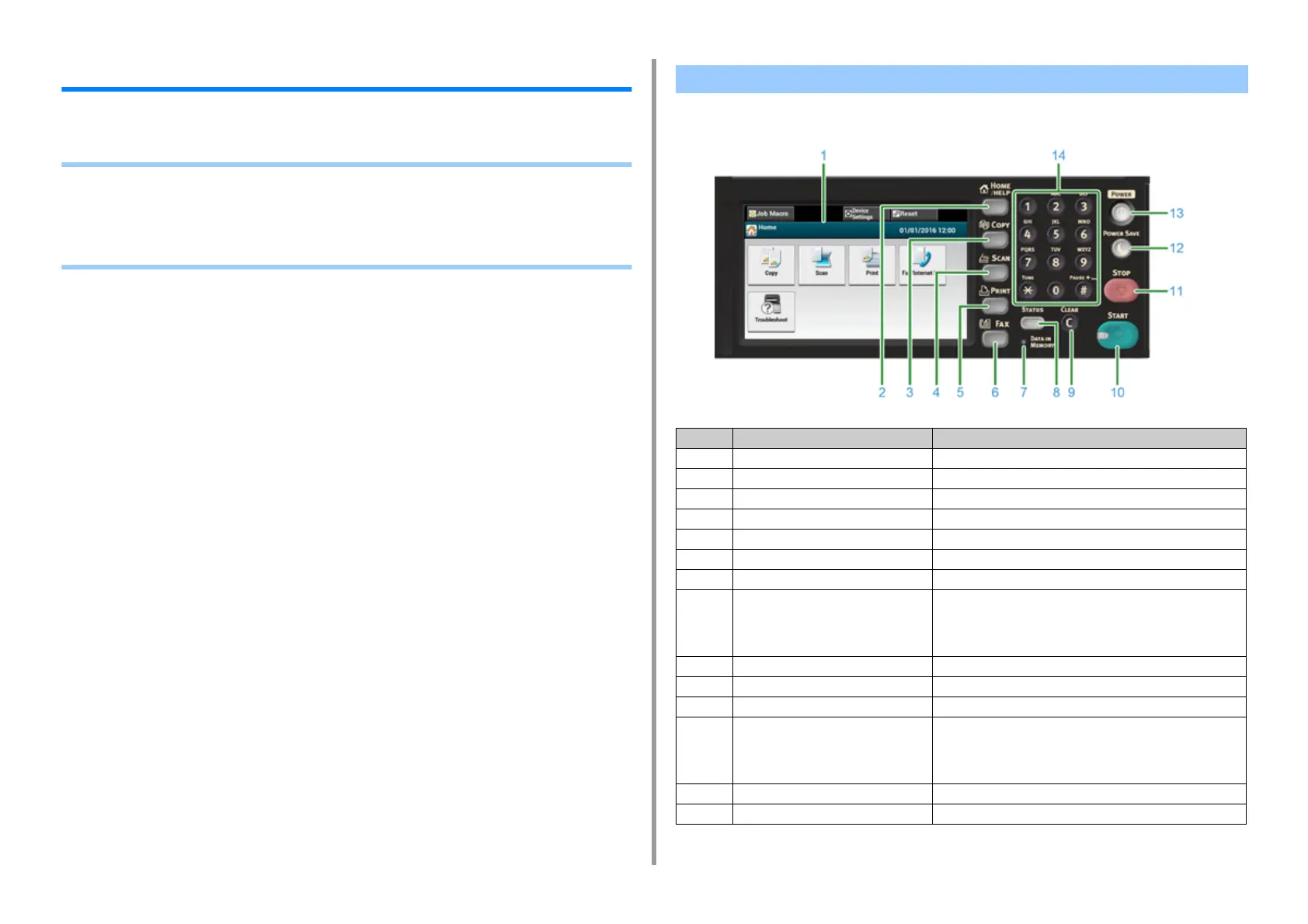

This section describes the names and functions of components on the operator panel.
Names and Functions
No. Name Function
1 Touch panel Allows you to select or set an item by pressing a displayed icon.
2 HOME/HELP button Displays the home screen.
3 COPY button Displays the copy function screen.
4 SCAN button Displays the scan function screen.
5 PRINT button Displays the print function screen.
6 FAX button Displays the fax function screen.
7 DATA IN MEMORY indicator Lights up when data remains in memory.
8 STATUS button Displays the status menu. Flashes/lights up if there is an error
status.
You can check the remaining amount of consumables and fax
communication status.
9 CLEAR button Clear the entered value.
10 START button Starts copying, scanning, faxing, or printing from USB Memory.
11 STOP button Cancels copying, fax transmissions, or other jobs.
12 POWER SAVE button Enters or exits the power saving mode.
In Power Save mode, lights up in green; In Sleep mode, flashes
in green (every 3 seconds); In Deep Sleep mode, flashes in
green (every 6 seconds).
13 POWER button Turns this machine on or off.
14 Numeric keypad Enters numbers and symbols.
