Oki MC860 User Manual

MFP overview > 14

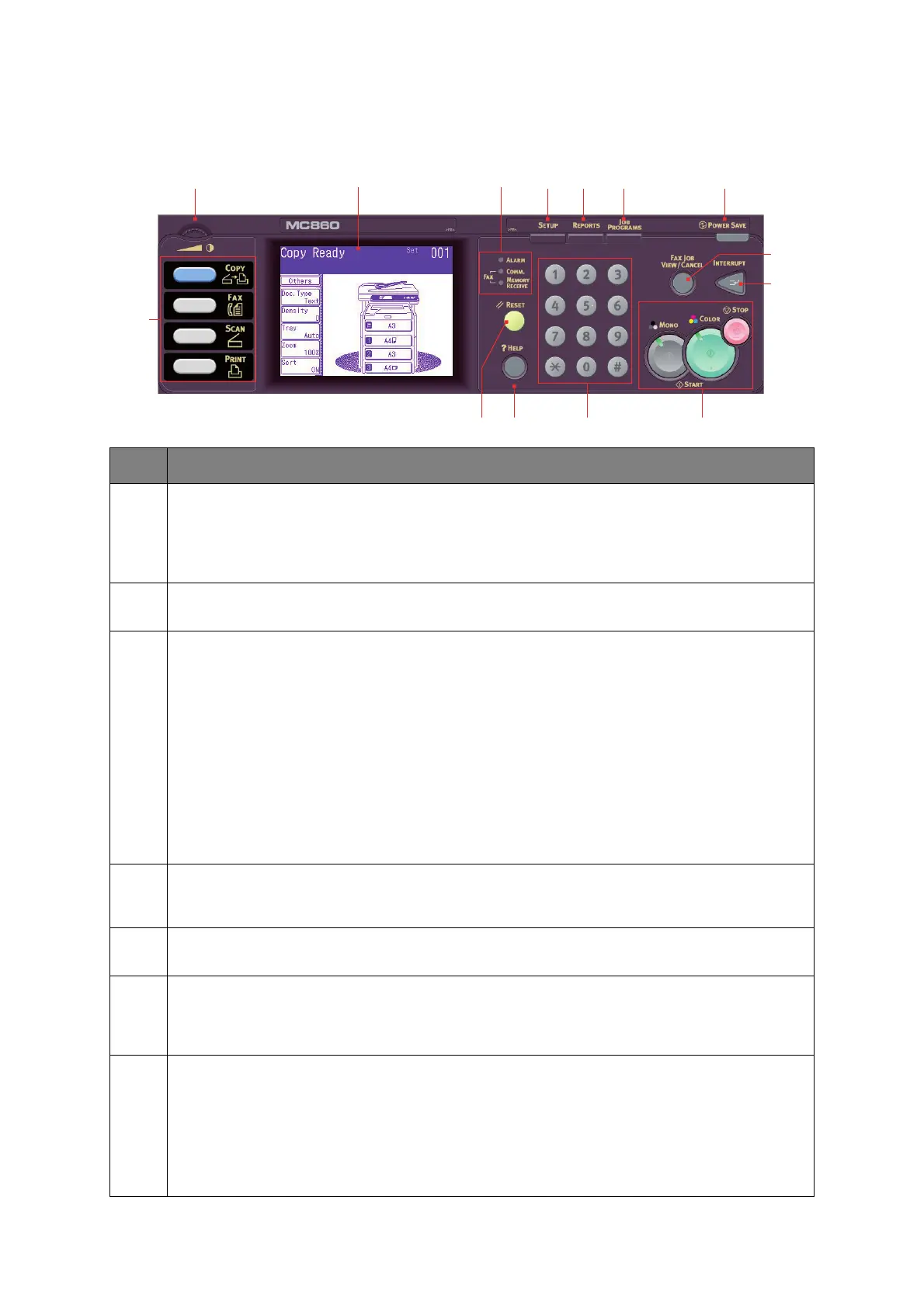

C ONTROL PANEL
REF. DESCRIPTION
1. Touch screen display
Enables you to make selections associated with the copying, faxing and scanning functions by
touching the screen to press selected buttons.
Be careful not to scratch the display with sharp or pointed objects e.g. a ballpoint pen as this may
impair the display.
2. Contrast Dial
Allows you to adjust the screen contrast as required.
3. Main function buttons
COPY: Pressing this button selects copy mode on the touch screen. This allows you to control the
copying process whereby documents to be copied are scanned in the scanner unit (document glass
or ADF) and the copies are automatically printed in the printer unit.
FAX: Pressing this button selects fax send mode on the touch screen. This allows you to control the
process whereby a document is scanned and then the scanned data is sent as a fax.
SCAN: Pressing this button gives access to several send modes on the touch screen. These allow
you to select and control the process whereby a document is scanned and the scanned data is sent:
by email as an attachment, to a local PC, to a network PC, to a USB memory stick. It also allows you
to arrange for a document to be scanned from a remote PC.
PRINT: Pressing this button selects print mode on the touch screen. This allows you to select and
print out a stored job or an encrypted print job. It also allows you to print out a job list of all recent
prints, or switch the machine to an “offline” state.
4. RESET button
Pressing this button returns all settings of a selected function to their default values, but does not
stop any jobs that are already in progress.
5. HELP button
Pressing this button when the green LED is flashing, displays help information on the touch screen.
6. Keypad
Use the numeric buttons to enter, for example, number of copies or a fax number. The * and #
buttons are used to navigate menus in touch-tone systems such as voice mail (if you have a
telephone handset connected), or in vertical service codes.
7. STOP/START buttons
STOP: Pressing this button stops the copying or scanning process.
START:
> MONO - Pressing this button starts the copying, faxing or scanning process in black & white.
> COLOR - Pressing this button starts the copying or scanning process in colour.
Green LED illuminates when copying/scanning is possible, if the LED in unlit then that function is not
possible, e.g only the Mono button LED illuminates when faxing (colour faxing is not possible).
54 6 7
121314 11 102 1
3
8
9

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
