Oki MC860 User Manual

Troubleshooting > 146

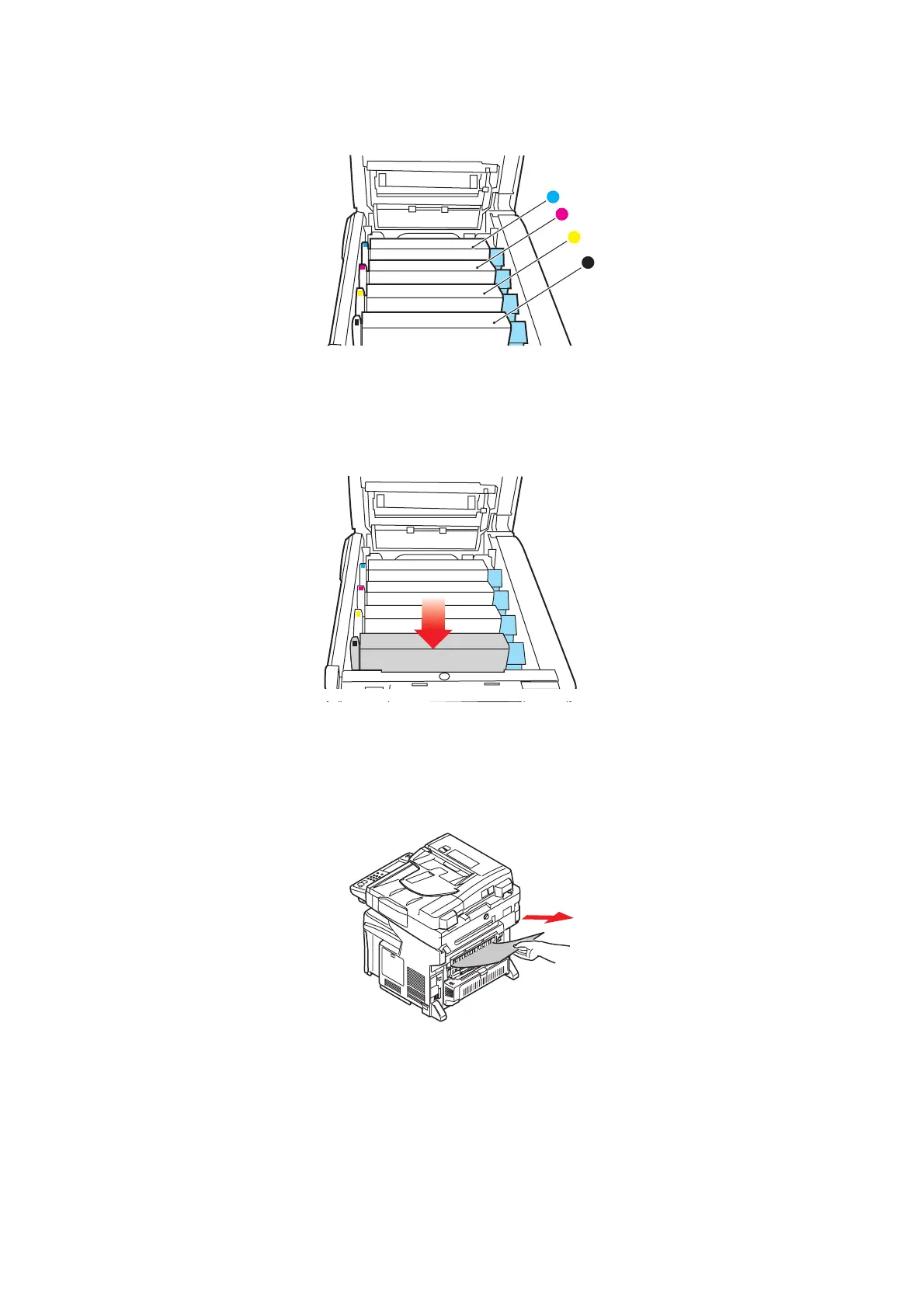

10. Starting with the cyan image drum unit nearest the fuser, replace the four image
drums into the drum cavity, making sure to locate them in the correct order.
Holding the complete assembly by its top centre, lower it into place in the MFP,
locating the pegs at each end into their slots in the sides of the MFP cavity.
11. Lower the top cover but do not press down to latch it closed yet. This will protect the
drums from excessive exposure to room lighting while you check the remaining
areas for jammed sheets.
12. Open the rear exit tray and check for a sheet of paper in the rear path area.
Pull out any sheets found in this area.
If the sheet is low down in this area and difficult to remove, it is probably still gripped
by the fuser. In this case raise the top cover, reach around and press down on the
fuser pressure release lever.
13. If you are not using the rear exit tray, close it once paper has been removed from
this area.
1. Cyan cartridge 3. Yellow cartridge
2. Magenta cartridge 4. Black cartridge
1
2
3
4

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
