ML1120/ML1190 eco User’s Guide – Paper handling > 30

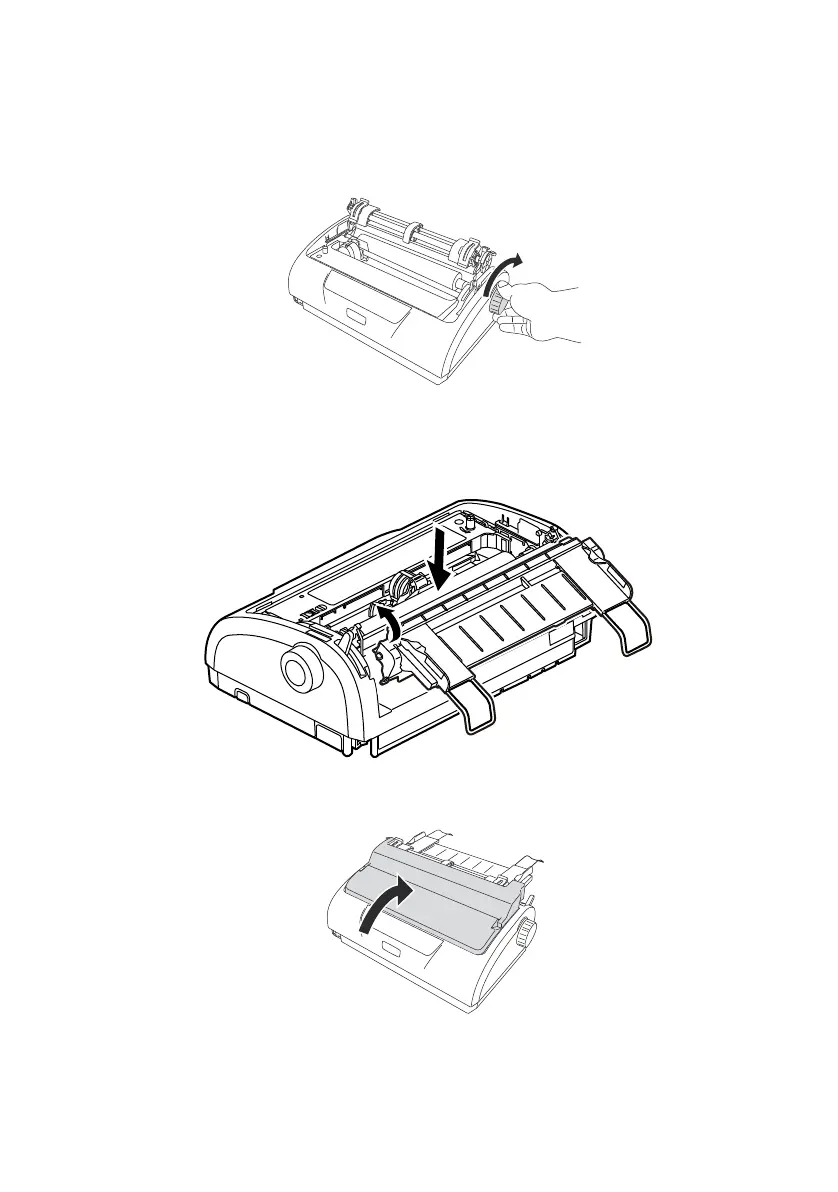

13. Turn the Platen Knob. If the tractor assembly is correctly
installed, the gear will turn. If the gear does not turn as
you turn the Platen Knob, repeat steps 10 to 12.
14. Replace the Input Tray and Rear Cover by fitting the Rear
Cover into the grooves at the back of the printer and
pulling gently forward until the Input Tray clips into place.
15. Replace the Access Cover.
