ML1120/ML1190 eco User’s Guide – Troubleshooting > 85
3. Remove the Input Tray and Rear Cover together by
gripping the Input Tray at both sides and pulling it up and
away from the printer.

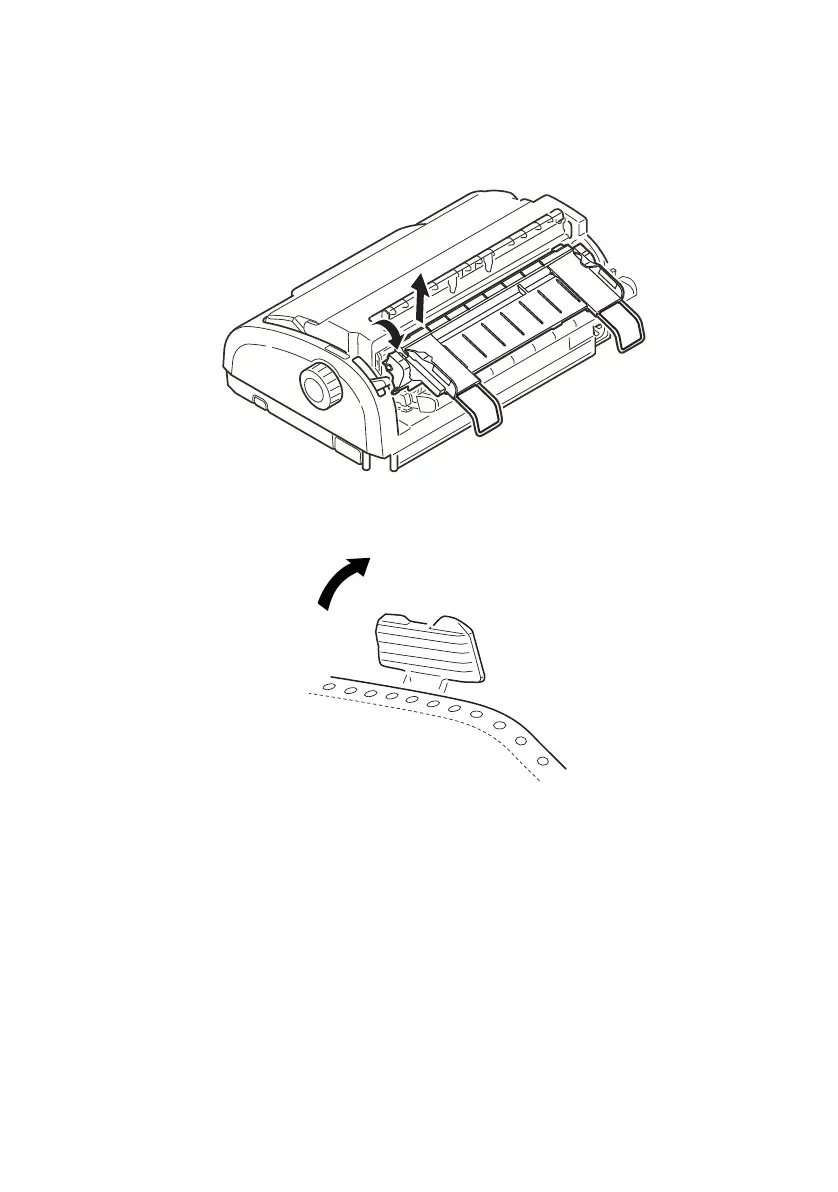

4. Raise each Pin Tractor cover and remove the continuous
forms from the Pin Tractors.
5. Rotate the Platen Knob and remove the forms from the
front of the printer.
6. If a form fragment remains inside the printer, place two or
three forms in a stack on the Pin Tractors and turn the
Platen Knob to push the fragment out of the printer.
7. When the paper jams are cleared, replace the Input Tray
and Rear Cover by fitting the Rear Cover into the grooves
To Next Page
