3.2.27 Sensor Lever
· Perform these procedures:
3.2.01
,3.2.02 , 3.2.04 , 3.2.05 , 3.2.06 , 3.2.20, 3.2.22 , 3.2.25
3.2.26 .

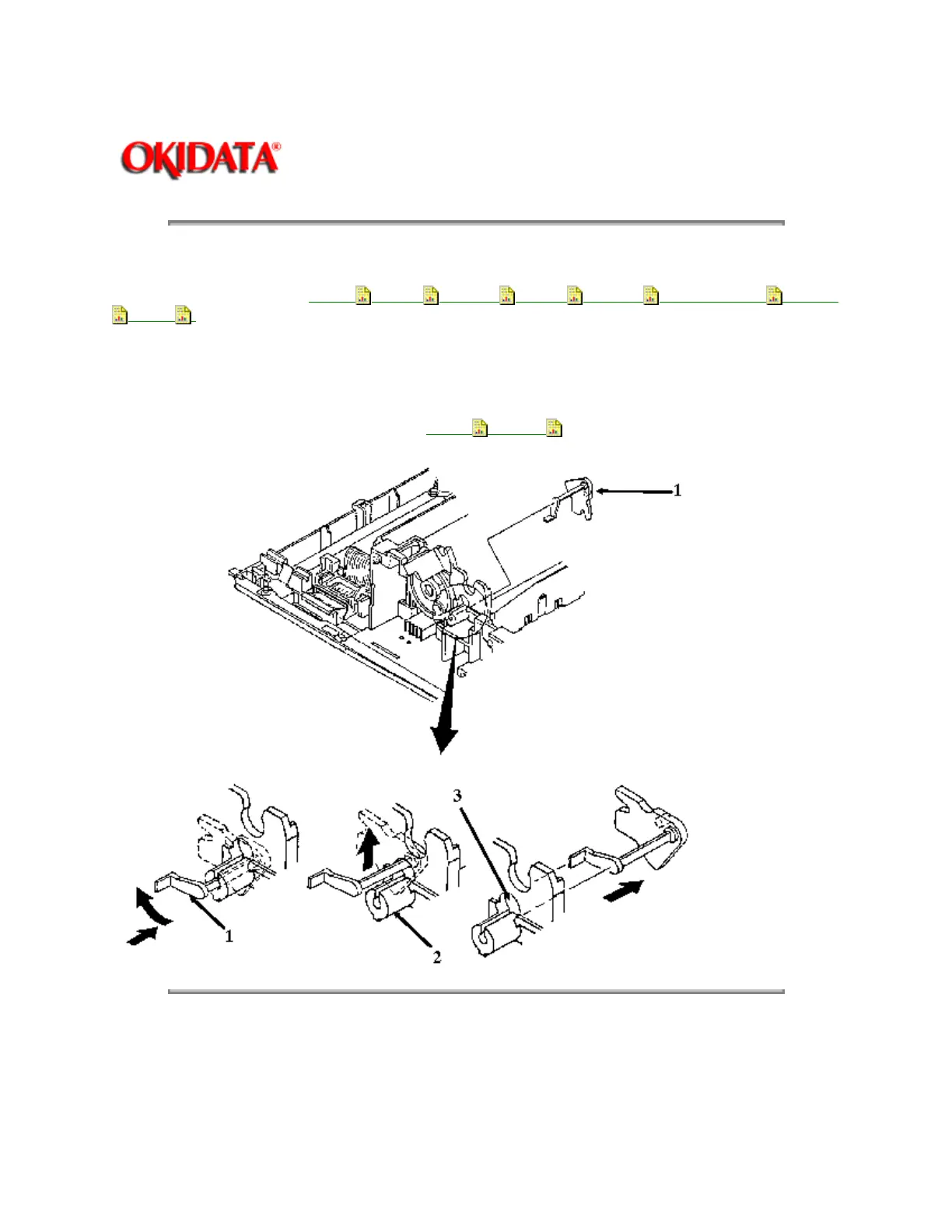

· Turn the sensor lever (1) clockwise until it is horizontal.
· Lift the sensor lever from the shaft bearing (2).
· Work the sensor lever from the guide hole (3) in the chassis and remove the lever.
P/N 53489001 Lever: Sensor All RSPL A B C
