Oki ML390 - Filter Assembly

Page: 50
Service Guide ML390/391
Chapter 3 Maintenance & Disassembly
3.2.09 Filter Assembly
· Perform these procedures:
3.2.01
,3.2.04 .

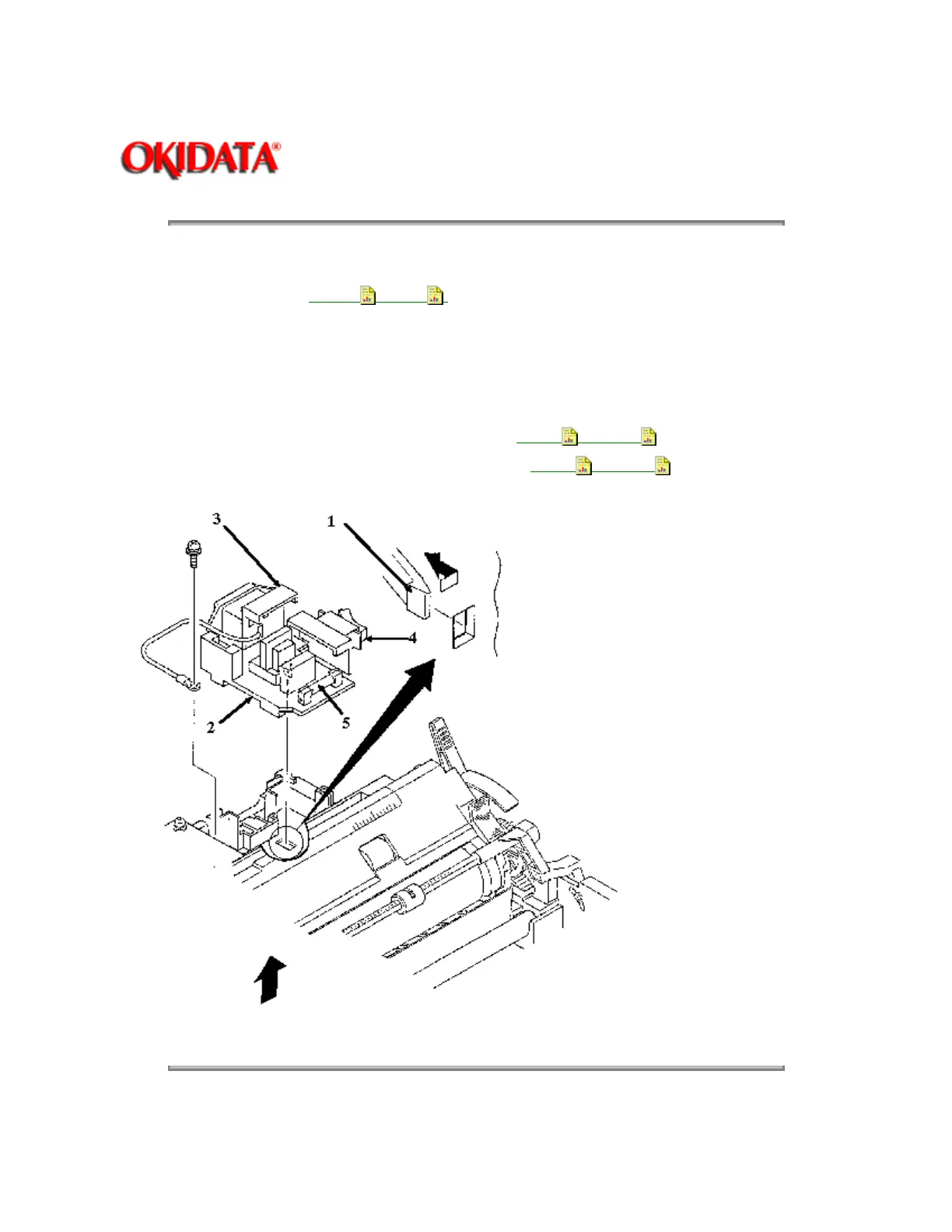

· Working from the bottom of the chassis, push on and release the claw (1) of the filter assembly (2).
· Lift the AC connector (3) and the AC power switch (4) from the two guides on the main frame.
· Remove the filter assembly.
· The filter assembly contains a fuse (5).
P/N 55503101 Filter: (Assembly) AC 120V All RSPL A B C
B.2.02
, B.2.03
P/N 55503102 Filter: 220/240 V (Assembly) All Option A B C
B.2.02
, B.2.03
