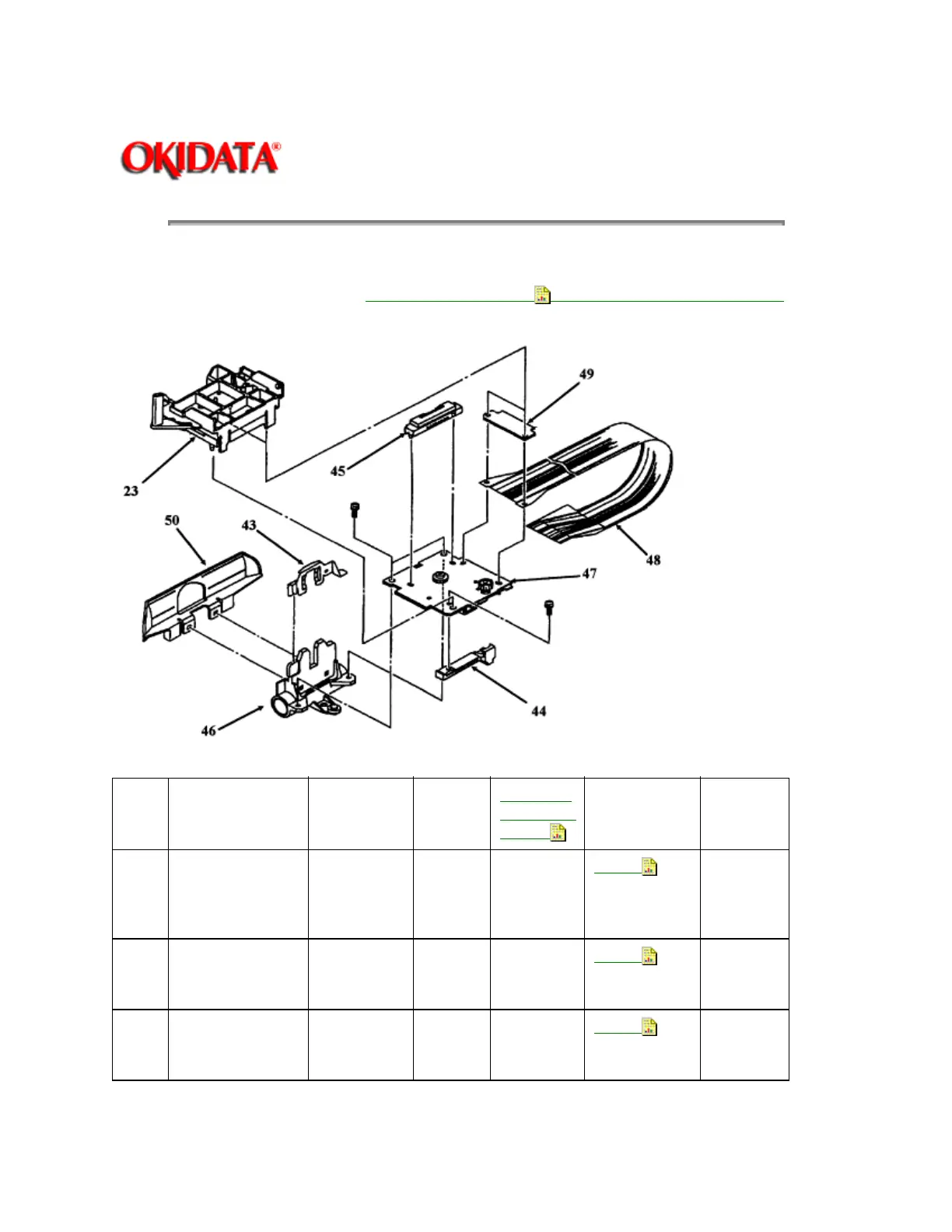

Oki ML390 - B.2.09 Carriage Assembly

Page: 139
Service Guide ML390/391
Chapter B Illustrated Parts Listing
B.2.09 Carriage Assembly
Part numbers are subject to change.
Refer to Section B.1.01
for finding current information.
Item Okidata P/N
Oki-J P/N
Description Product
Comment
s Refer to
B.1.02
Disassembly
Procedure
Serial No.
Rev.
Letter
70 50069601
3PP4025-3114G
1
Panel:
Operation
w/Frame
(Assembly)
Both RSPL
3.2.05
A B C
71 50069610
3PP4025-3114G
10
Panel:
Operator
Both+ RSPL
3.2.05
A B C
72 55045601
4YA4021-1074P
1
PCB: LXSP
(Operator
PCB)
Both RSPL
3.2.05
A B C
