ML690/ML691 User’s Guide
71

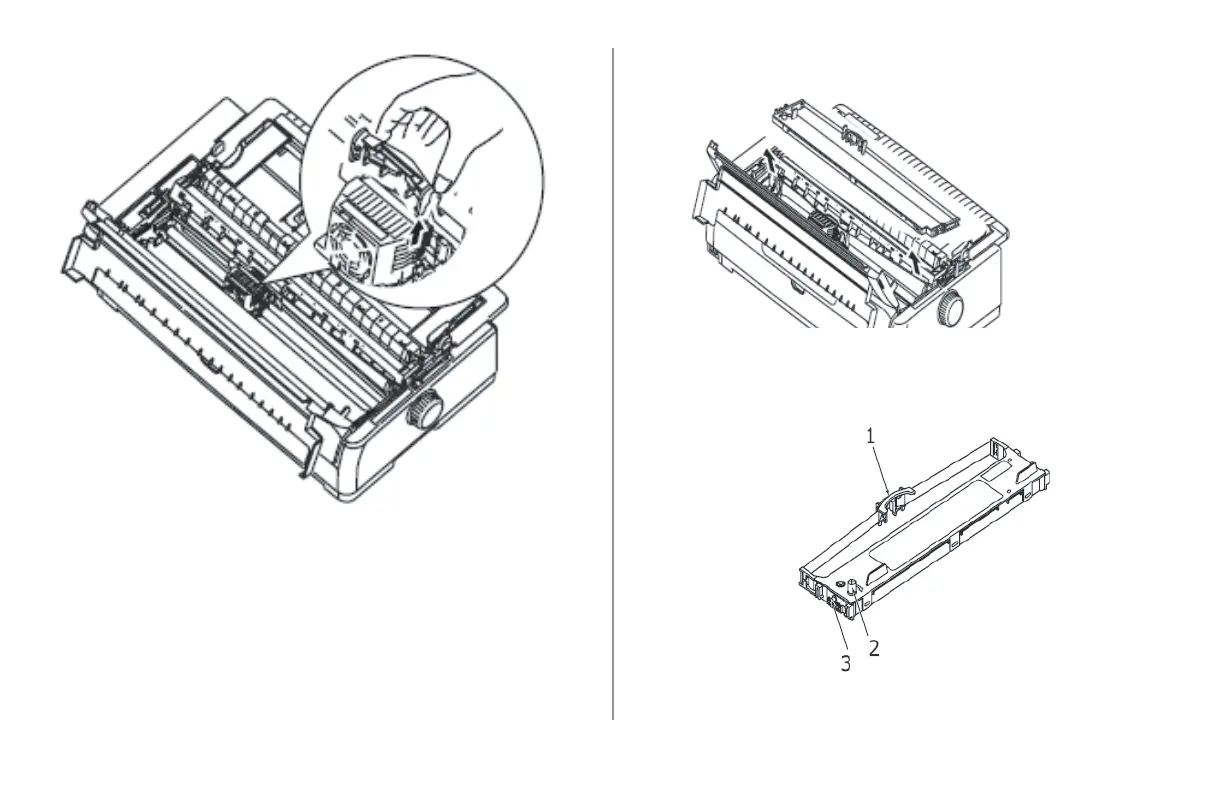

Swing the used ribbon cartridge up off the
printhead, lift it out, and discard it.
Remo
ve the new ribbon cartridge from its
wrapping and note the position of the Ribbon
Guide (1), Knob (2), and Pin (3).
4.
5.
70
72
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Introduction
5
Printer Features
5
Oki Data on the Internet
5
Parts Identification: Front View
6
Parts Identification: Rear View
7
Parts Identification: Inside View
7
The Control Panel
8
Print Mode Key Functions
12
Chapter 2: Paper Handling
14
Loading Continuous Forms Paper
15
Rear Feed
16
Front Feed
19
Bottom Feed (Optional Pull Tractor)
21
Tearing off Continuous Forms Paper
22
Aligning the Tear-Off Perforations
22
Removing Continuous Forms Paper
23
Loading Cut Sheet Paper
23
Cut Sheet Paper, Top and Front Feed
23
Ejecting Cut Sheet Paper
25
Notes on Different Types of Paper
26
Top of Form (TOF)
27
Top of Form (TOF) and Forms Tear-Off
27
Determining if Forms Tear-Off Is off or on
28
To Print the Menu
28
To Use the TEAR Key
28
Setting Top of Form (TOF)
29
Temporarily Changing the Top of Form Position
30
Resetting Top of Form to the Factory Default
30
Forms Tear-Off Feature
31
Potential Problems with Software Packages
31
Changing the Forms Tear-Off Setting
32
Manual Forms Tear off
32
Paper Park
33
Setting the Paper Thickness Lever
33
Paper Type Table
34
Chapter 3: Print Settings
35
Print Quality
36
Draft: the Default
36
HSD: High Speed Draft
36
LQ: Letter Quality
36
Character Pitch
37
Print Speed
38
Printer Reset
38
Emulations
39
Changing Emulations
39
Chapter 4: Menu Mode
40
Menu Mode Keys
40
Menu Mode Keys and Functions
41
Entering and Exiting Menu Mode
42
Resetting the Menu to the Factory Defaults
42
Printing the Menu Settings
43
Printing the Current Menu Settings
43
Printing All Menu Settings
43
Changing the Menu Settings
43
Menu Settings Table
44
Chapter 5: Maintenance
70
Replacing the Ribbon Cartridge
70
Ribbon Cartridge Handling
70
If Ribbon Should Contact the Eyes
73
If Ribbon Should Contact the Skin
73
For more Information
73
Clearing Paper Jams
74
Continuous Feed Paper Jams
74
Cut Sheet Paper Jams
75
Cleaning the Printer
77
Printer Exterior
77
Printer Interior
77
Testing the Printer
78
Font Sample Test
78
Rolling ASCII Test
79
Hexadecimal Dump Mode
80
Chapter 6: Troubleshooting
81
General Information
81
Responding to Alarm Conditions
82
Problems / Solutions
83
Appendix A: Parts & Accessories
89
Purchasing Parts & Accessories
89
Consumables
90
Accessories
90
Appendix B: Printer Control Codes
91
IBM Proprinter Commands
91
Epson FX Commands
94
Appendix C: Specifications
96
Print Method
96
Printhead
96
Interfaces
96
Receive Buffer Size
96
Printhead Life
96
Reliability
96
Ribbon Life
96
Emulations (Co-Resident)
96
Physical Specifications
96
Print Speed
97
Characters Per Line (Cpl)
97
Graphics Resolution
97
Resident Fonts
97
Bar Codes
98
Paper Thickness: Tractor Feed
98
Environmental Requirements
98
Temperature
98
Humidity
98
Electrical Requirements
98
Paper Specifications
99
