Oki MPS9650c Maintenance Manual

Oki Data CONFIDENTIAL

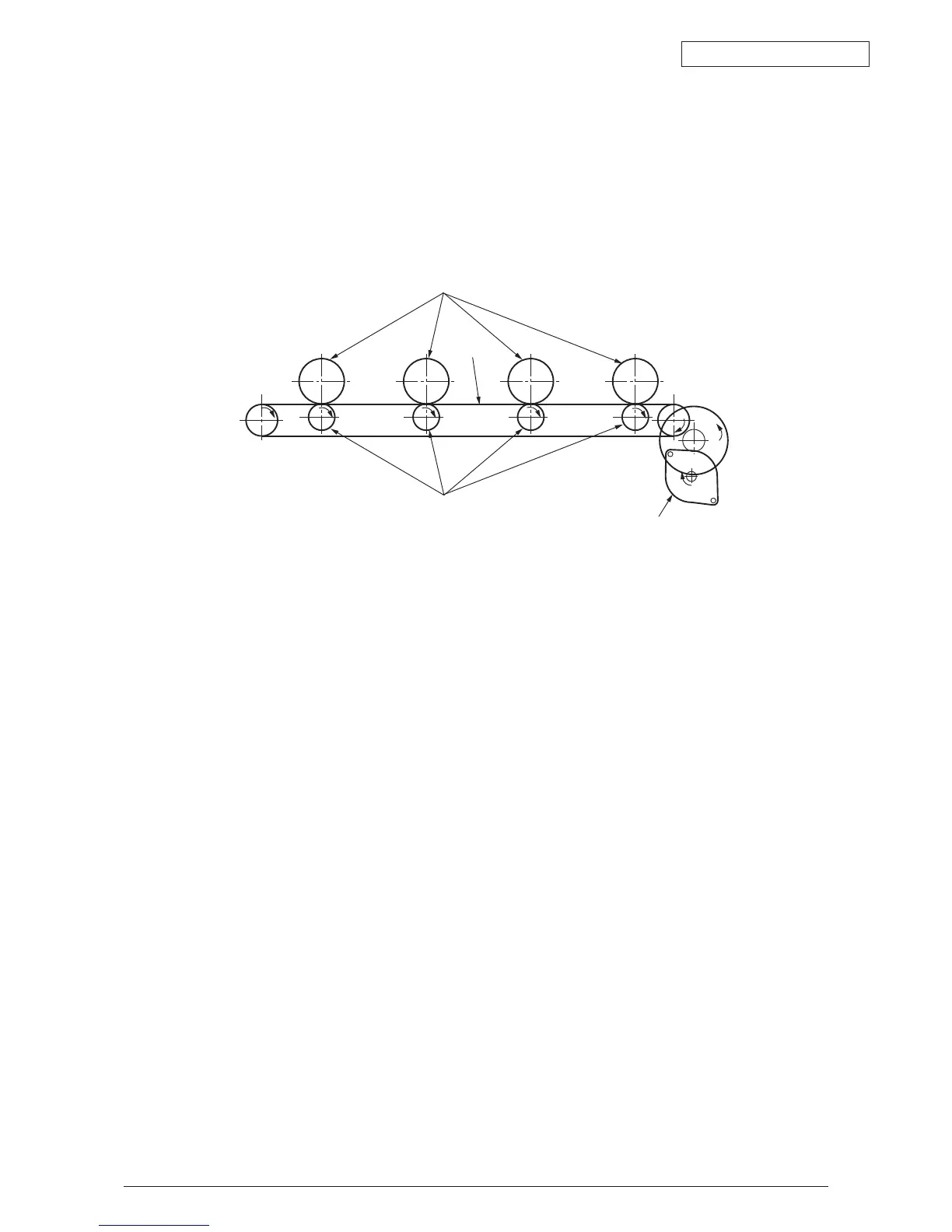

(4) Conveyor Belt
1. The conveyor belt motor drives the conveyor belt when turning in the direction of
the arrow. The belt unit consists of one transfer roller that is directly under the
drum for each color, with the conveyor belt in between the drum.
When a specified voltage is applied, the conveyor belt and transfer roller trans-
fers the toner image on the drum for each color, then feeds the paper on the
conveyor belt to the fuser unit.
Conveyor belt
Transfer roller
Transfer belt motor
Drum
K Y M C
Figure 2-8
43627911TH Rev. 3
37 /
