Oki Data CONFIDENTIAL

(5) ID Unit Up/Down Operations

1. The C-ID motor drives the ID unit up and down.

2. Figure 2-9-a indicates ID unit operations during color printing. When the C-ID

motor rotates (CCW), the lift uplink slides to the left, and as indicated in Figure

2-9-a, each ID unit moves DOWN. The printer is now ready for color printing.

3. Figure 2-9-b indicates the ID unit operations during monochrome printing. When

the C-ID motor rotates (CW), the lift uplink slides to the right, and as indicated

in Figure 2-9-b, all units other than the K-ID moves UP. The printer is now ready

for black-and-white printing.

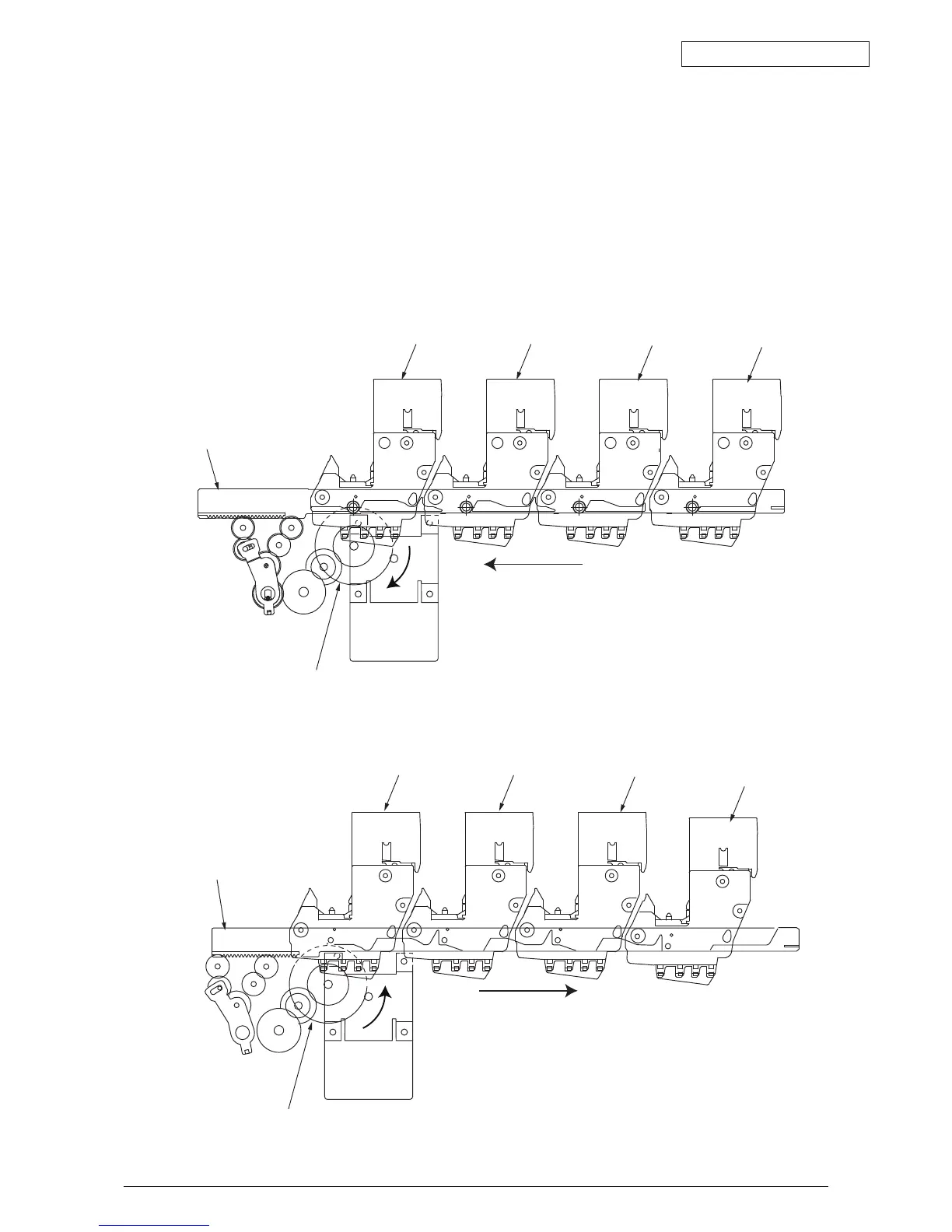

ID Unit Operations During Color Printing

C-ID Unit : Down

C-ID Unit M-ID Unit

Y-ID Unit

K-ID Unit

M-ID Unit : Down

Y-ID Unit : Down

K-ID Unit : Does not move.

Lift uplink

C-ID Motor

(Rotates clockwise)

Figure 2-9-a

ID Unit Operations During Monochrome Printing

C-ID Unit : Lift up

C-ID Unit M-ID Unit

Y-ID Unit

K-ID Unit

M-ID Unit : Lift up

Y-ID Unit : Lift up

K-ID Unit : Does not move.

Lift uplink

C-ID Motor

(Rotates counterclockwise)

Figure 2-9-b

43627911TH Rev. 3
