3-2. Connecting the drawer kick cable

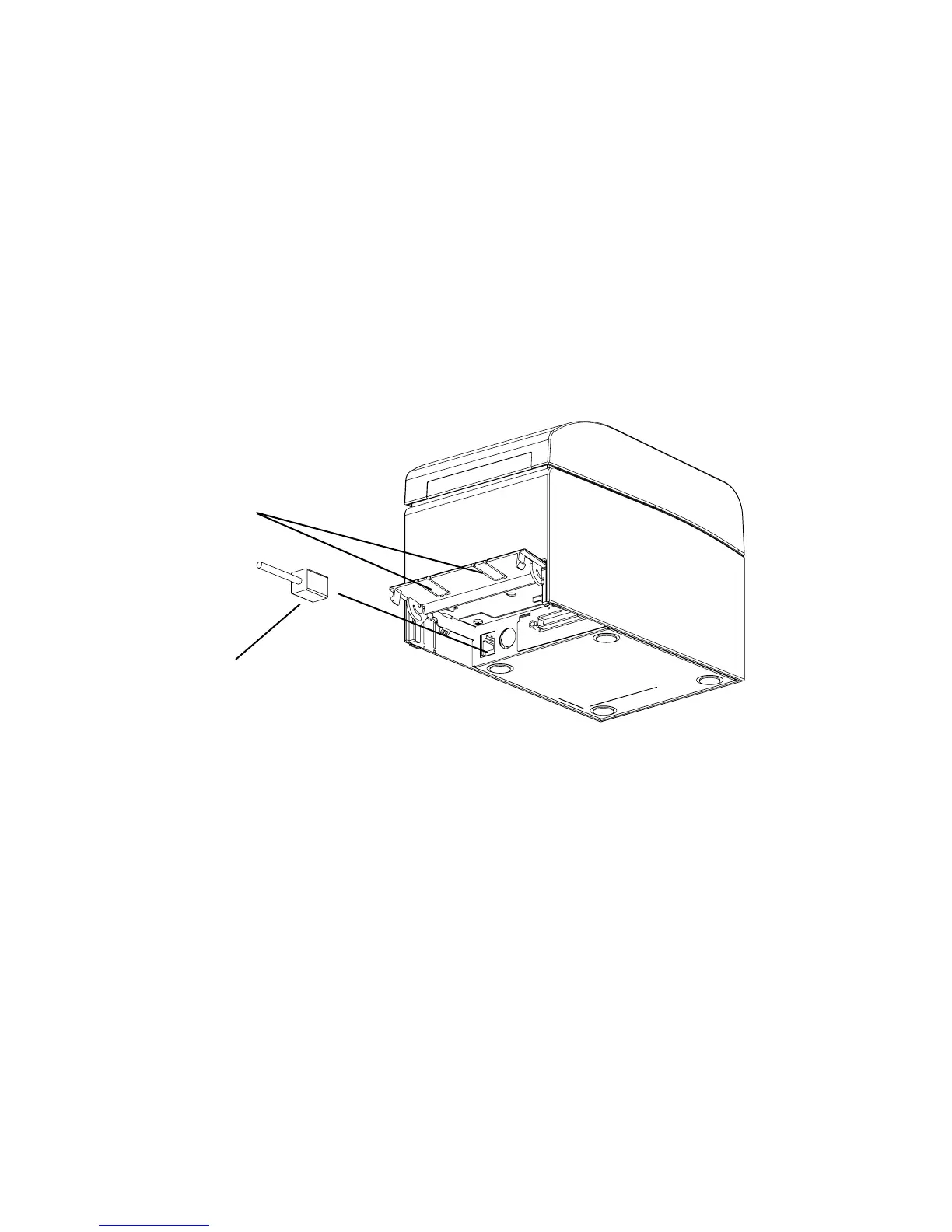

Open the connector cover at the rear of the printer by pulling it up, and
connect the drawer kick cable to its rear connector socket. Close the cover
after connecting the cable.
Note : If the cable is arranged so that it extends from the rear, remove the inserts
in the connector cover with nippers or a similar tool. Unless the inserts are
removed in this case, the cable may be damaged and cause a failure.
Note : The drawer kick cable must not be used for a purpose other than for control
of the drawer.
