Oki PT390 - B-3.LAN Interface

56

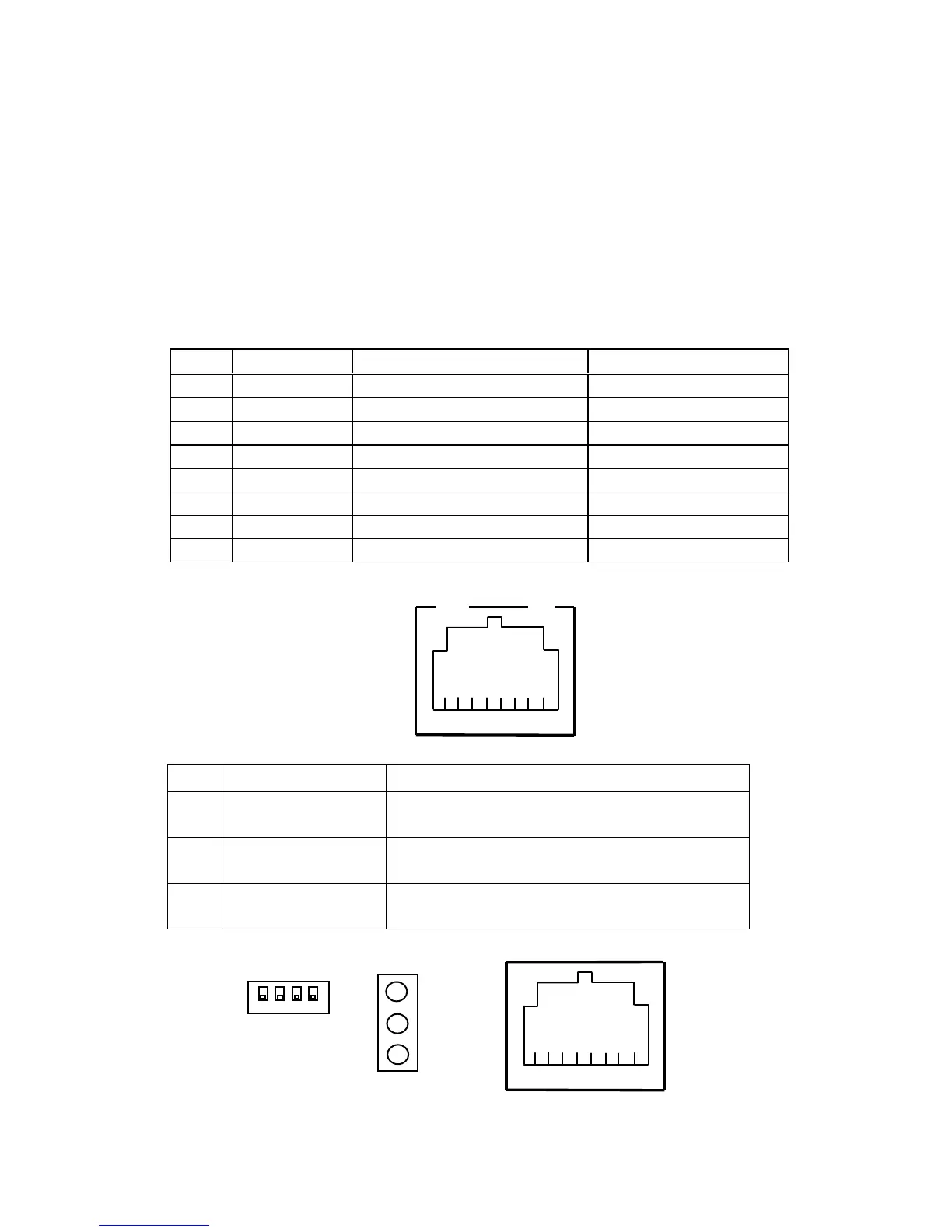

B-3.LAN Interface
(1) LAN Connector TCP/IP (10BASE-T/100BASE-TX1 Port)
Note 1: Please refer the manual with IP address setting utility for how to set
IP address.
Note 2: You can find the MAC address in the side of LAN Connector.
(2) Connector: 8Pins RJ-45 (Printer Side)
No.
Signal
Input / Output
Reference
1
TX+
Output
Output Data
2
TX–
Output
Output Data
3
RX+
Input
Input Data
4
N.C
-
5
N.C
-
6
RX–
Input
Input Data
7
N.C
-
8
N.C
-
(3) LED
No.
Display
Action contents
3
Status
When receives packet, lights up for
50msec.
2
100BASE-TX
Link
When the connection is recognized as
100BASE-TX, lights up.
1
10BASE-T Link
When the connection is recognized as
10BASE-T, lights up.
1
8
1
8
3
2
1
