Oldfields Treco - STEP 17: Door Assembly Continued

L6/L62
F/F2

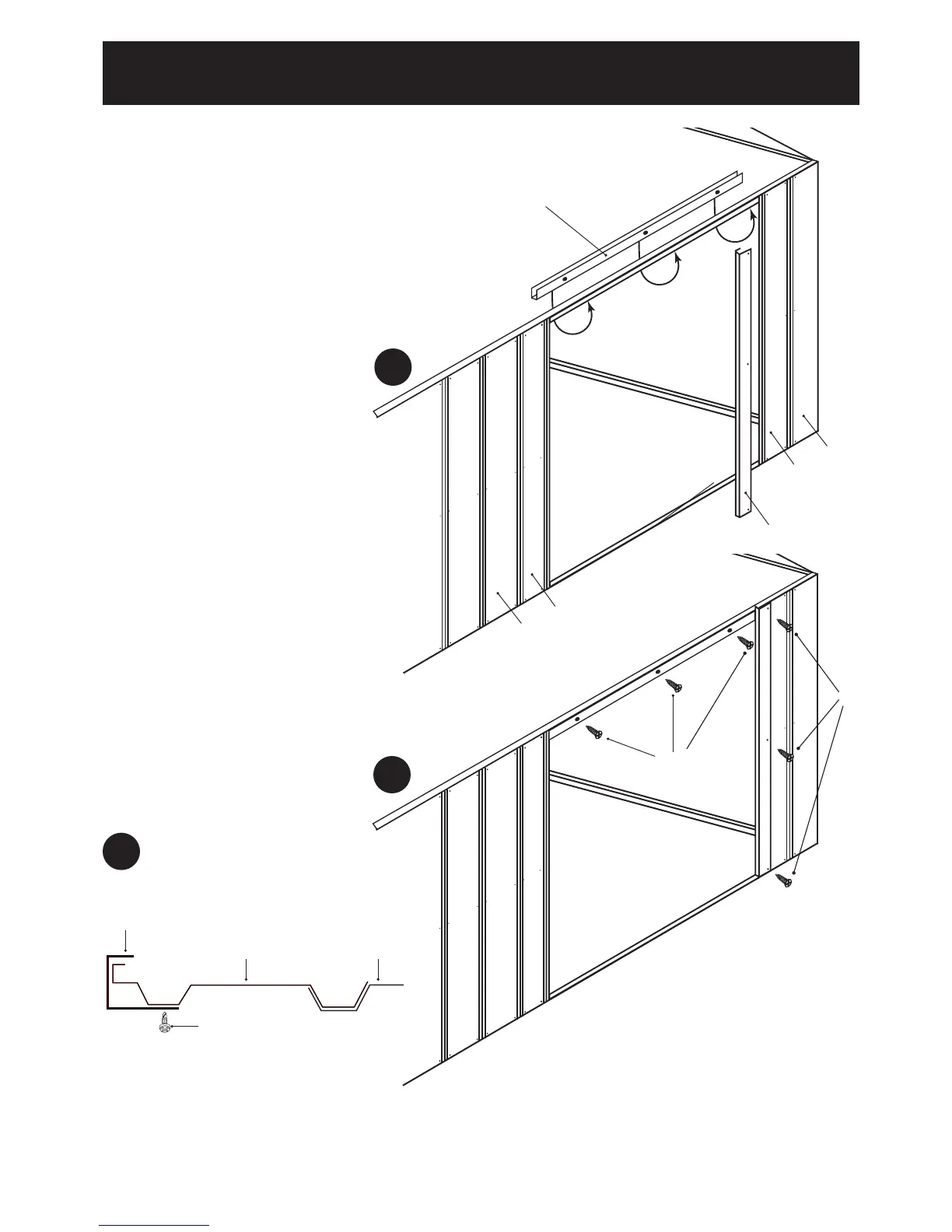

STEP 17 - Door Assembly continued
TOP VIEW
FASTEN THE 'HD5/HD52' TO THE DOOR JAMB
'L6/L62' AT THE TOP AND THE BOTTOM THEN THE
MIDDLE WITH SCREWS 'X12'
X12 Screw
HD5/HD52
L6/L62 F/F2
L6/L62
K/K2
HD5/HD52
C1525
Fix three self tapping screws or
pre-drill three 2.8mm holes into
the double door support 'C1525'
then fix to the long top rail 'H'
with 'X12' screws as shown in
diagram 1 and 2.
Fix one door jamb supporter
'HD5/HD52' to the door jamb
'L6/L62' as shown in diagram 3.
Fix the hinges on the door to the
'HD5/HD52' with 'X12' screws.
Slide the second 'HD5/HD52'
over the other door jamb, screw
second door to the 'HD5/HD52'.
Adjust the door and the attached
'HD5/HD52' against the
previously fixed door leaving a
2-3mm gap between the centre
of the two doors.
Attach the second 'HD5/HD52'
to the Door Jamb.
X12's
X12's
1
2
3
Note 'C1525' is not needed when
doors are place under the gables
25
