Oldfields Treco - STEP 18: Door Assembly Final Steps

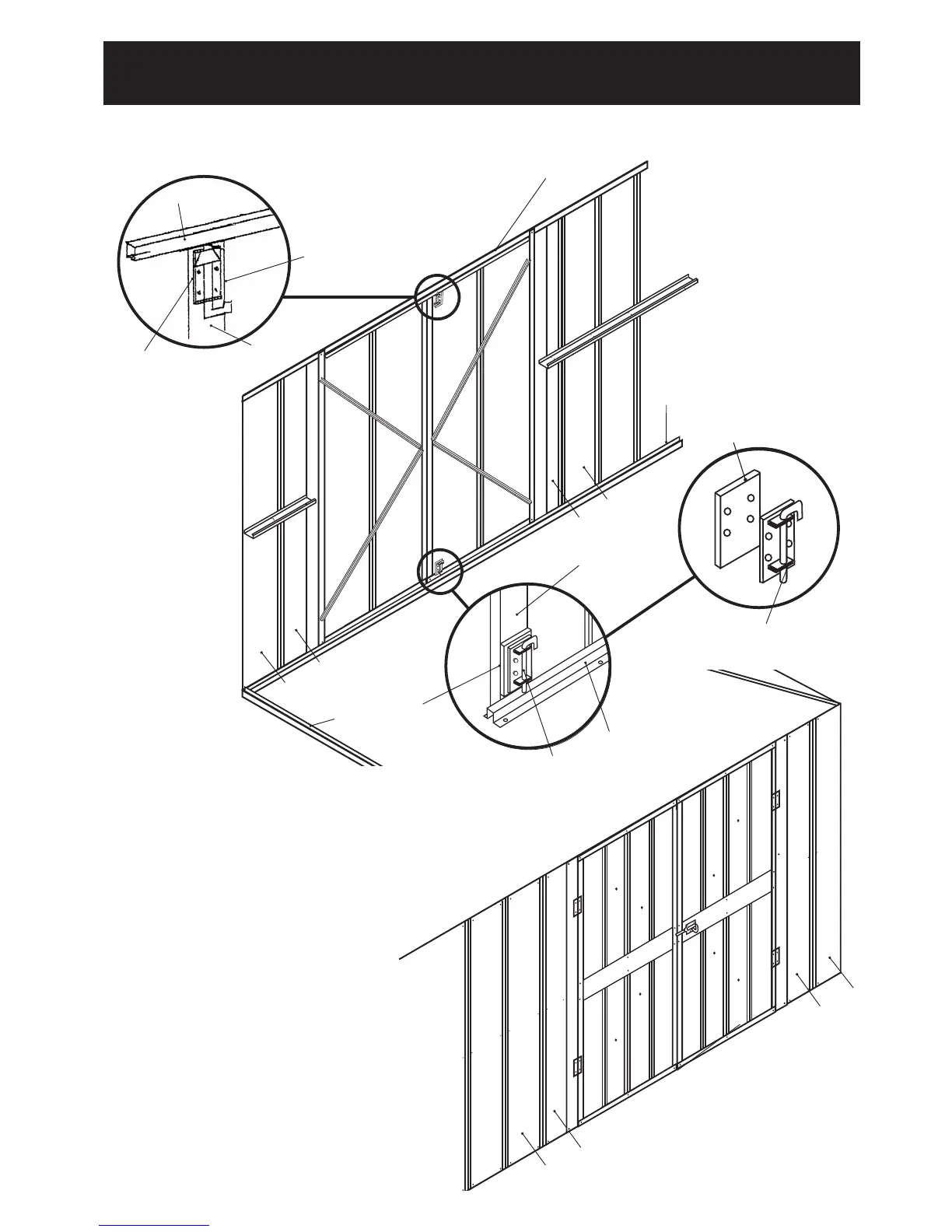

STEP 18 - Door Assembly continued
L6/L62
F/F2
L6/L62
C1525
Padbolt
Spacer
HA01002A
Padbolt
HA01000A
B
View from inside of shed
Fix the Padbolt and
Padbolt Spacer to the
inside of the Door frame
with 'X12' Screws.
Mark the 'C1525' (or
'A1' if doors under
Gable) drill a 10mm
diameter hole
for the Padbolt shaft
Drill 10mm diameter
hole for Padbolt shaft
in base rail 'B'.
Padbolt
Spacer
HA01002A
Padbolt
HA01000A
Door Trim
C1970
Internal padbolt
spacer
HA01002A
Padbolt
HA01000A
L6/L62
K/K2
L6/L62
F/F2
A1
B
C1525
K/K2
26
Fix Pad Bolt 'HA01000A'
to door supporter on the outside
of the Door that isn't fixed with
Padbolts on the inside.
