2HA/2HB
1-5-6

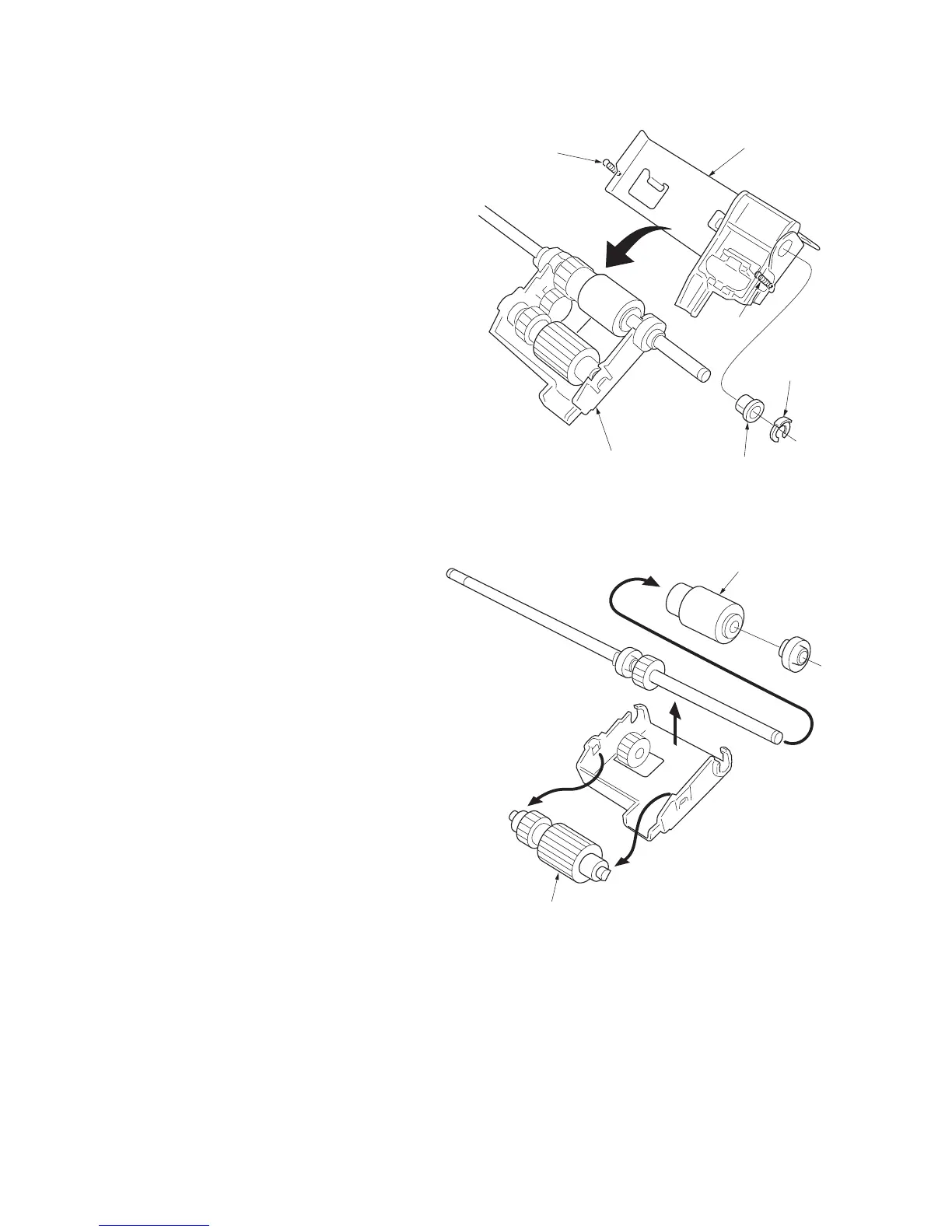

7. Remove the springs, stop ring and bushing
and then the shaft holder from the upper
paper feed unit.
Figure 1-5-8
8. Remove the forwarding pulley from the
upper paper feed unit.
9. Remove the paper feed pulley from the
upper paper feed unit.
10. Replace the forwarding pulley and paper
feed pulley and refit all the removed parts.
Figure 1-5-9
Upper paper feed unit
Bushing
Stop ring
Shaft holder
Spring
Spring
Forwarding pulley
Paper feed pulley
