Olivetti d-Copia 2000 Service Manual

2HA/2HB
1-5-15
(2-2) Fitting the scanner wires
Caution:
When fitting the wires, be sure to use those specified below.
Machine front: P/N 2C91236 (gray)
Machine rear: P/N 2C91235 (black)
Fitting requires the following tools:
Two frame securing tools (P/N 302C968310)
Two scanner wire stoppers (P/N 3596811)
Procedure
1. Remove the screw and then scanner wire
drum gear at the machine rear side.

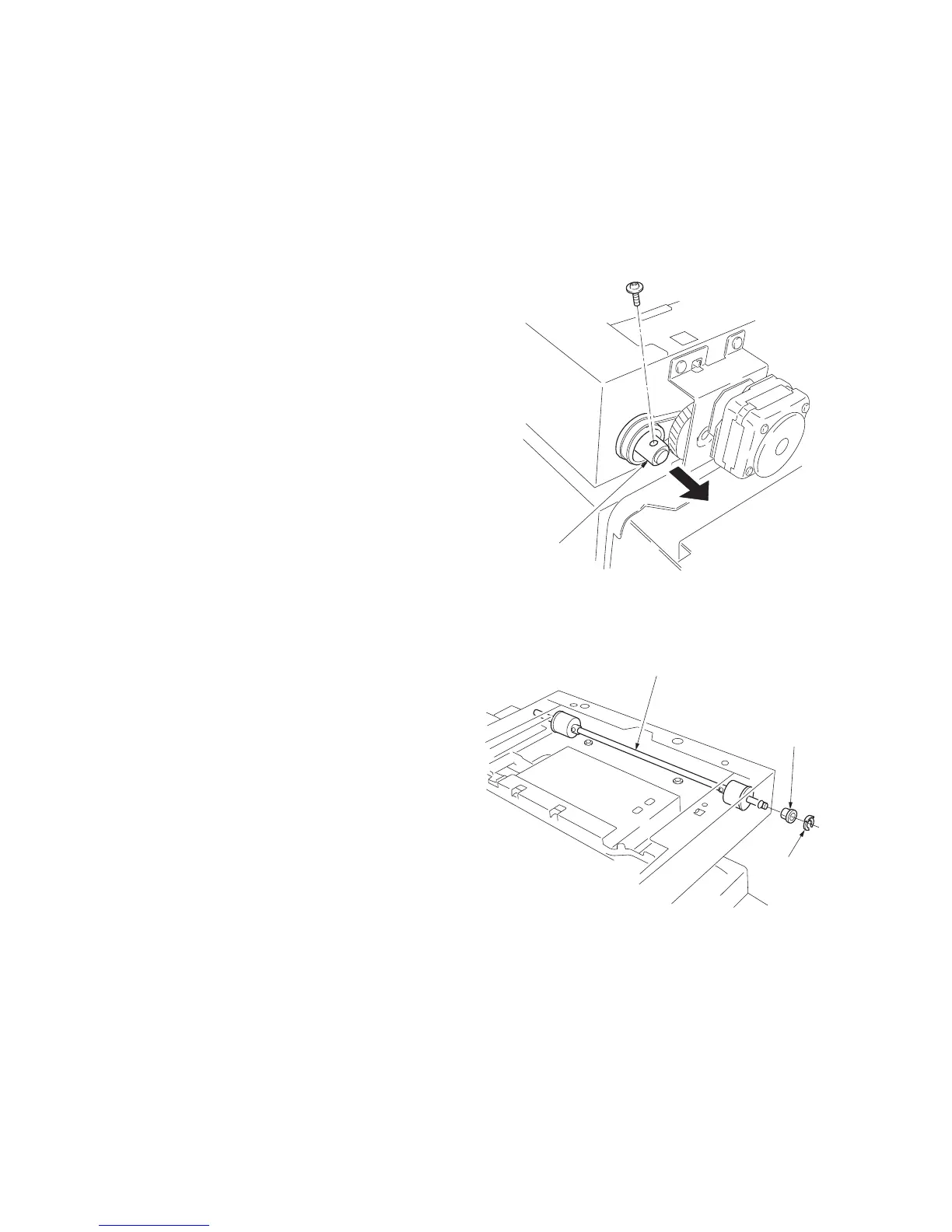

Figure 1-5-32
2. Remove the stop ring and bushing from the
front of the scanner wire drum shaft.
3. Remove the scanner wire drum shaft from
the scanner unit.
Figure 1-5-33
Scanner wire
drum gear
Scanner wire drum shaft
Bushing
Stop ring
